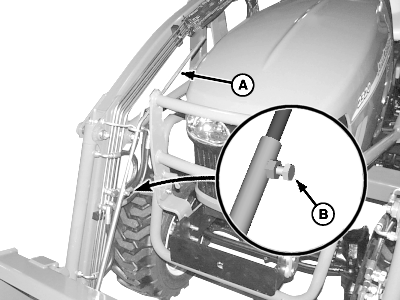

Adjusting Bucket Level Indicator1. Position bucket/attachment level on ground.2. Loosen cap screw (B). 3. Adjust rod (A) up or down until bend rests in guide bracket. 4. Tighten cap screw to hold rod securely in place.
|
|
OUO6077,00019AD -19-27JUN05-1/1 |
