Attach Loader to Tractor-200CX

1. Start tractor engine.

2. Drive tractor slowly to right-hand side of loader.

3. Engage tractor parking brake and/or place transmission in PARK .

4. Shut off tractor engine and remove key.

causym CAUTION: To help prevent injury from escaping hydraulic oil under pressure, relieve pressure in the system.

5. Move control lever(s) back and forth and side-to-side (if applicable) several times. (See your tractor Operator's Manual.)

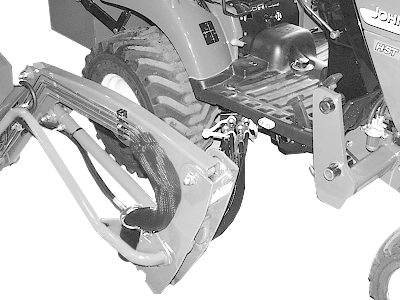

6. Connect hydraulic hoses to couplers on tractor using color-coded caps on hoses to match numbers and/or colors on decal by coupler plate. (See IDENTIFYING HOSE CONNECTIONS in Service section.)

7. Start tractor engine.

W09283
X9811

OUO6077,00019C2 -19-14MAR08-1/2

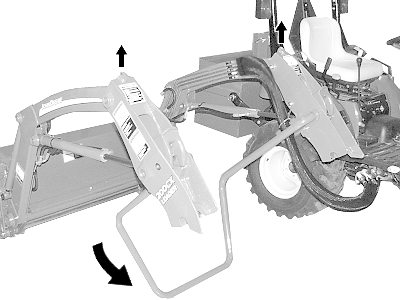

8. Raise loader from ground by extending lift cylinders. Parking stand should contact ground and extend rearward toward tractor.

9. Shut off tractor engine and remove key.

causym CAUTION: To help prevent injury from escaping hydraulic oil under pressure, relieve pressure in the system.

10. Move control lever(s) back and forth and side-to-side (if applicable) several times. (See your tractor Operator's Manual.)

11. Disconnect hydraulic hoses.

12. Attach loader to tractor. (See ATTACHING LOADER in Attaching Loader [200CX] section.)

W09284

OUO6077,00019C2 -19-14MAR08-2/2
