Attach Loader to Tractor-200X

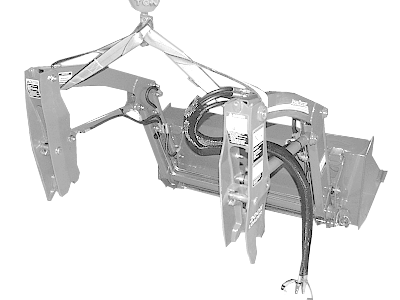

1. Lift rear of loader off ground using overhead hoist and lifting straps, as shown.

W07276

OUO6077,00019C3 -19-04FEB08-1/10

NOTE: Make sure bushing (C) is installed in inner mast hole.

2. Remove retaining ring (A) and pin (B) from each loader mast.


A-Retaining Ring
B-Pin
C-Bushing

W07277

OUO6077,00019C3 -19-04FEB08-2/10

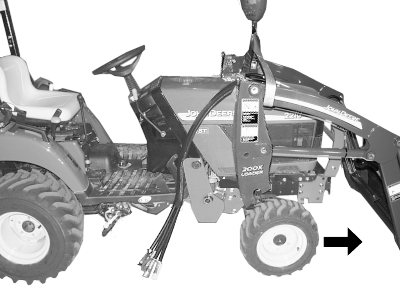

3. Start tractor engine.

4. Drive tractor slowly under loader, close enough to connect hydraulic hoses.

5. Engage tractor parking brake and/or place transmission in PARK .

6. Shut off tractor engine and remove key.

W07278

OUO6077,00019C3 -19-04FEB08-3/10

causym CAUTION: To help prevent injury from escaping hydraulic oil under pressure, relieve pressure in the system.

7. Move control lever(s) back and forth and side-to-side (if applicable) several times. (See your tractor Operator's Manual.)

X9811

OUO6077,00019C3 -19-04FEB08-4/10

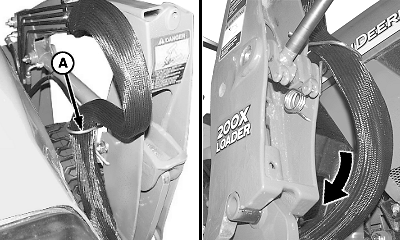

8. Route hoses through hose support (A) on inside of right-hand loader mast, as shown.


A-Hose Support

W09285

2210, 2305, 2320 and 2520 Tractors

W07366

4100, 4110 and 4115 Tractors

OUO6077,00019C3 -19-04FEB08-5/10

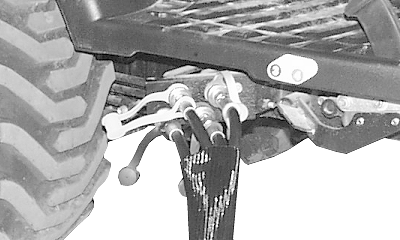

9. Connect hydraulic hoses to couplers on tractor using color-coded caps on hoses to match numbers and/or colors on decal by coupler plate. (See IDENTIFYING HOSE CONNECTIONS in Service section.)

W07286

2210, 2305, 2320, 2520 and 2720 Tractors

W07287

4100, 4110 and 4115 Tractors

OUO6077,00019C3 -19-04FEB08-6/10

10. 2210, 2305, 2320, 2520 and 2720 Tractor: Place hydraulic hoses into guide (A).

11. Start tractor engine.


A-Hose Guide

W07300

OUO6077,00019C3 -19-04FEB08-7/10

12. Extend loader lift cylinders.

13. Drive tractor slowly, straight into loader so loader masts line up with mounting frames, as shown.

NOTE: It may be necessary to drive tractor forward/backward slowly or lower overhead hoist to keep masts/frames in line while performing the following procedures.

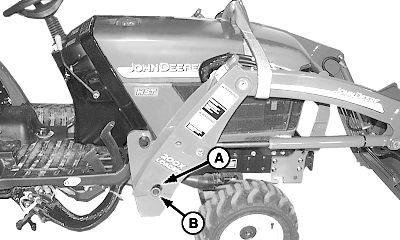

14. Slowly retract lift cylinders fully. Notch (A) will catch on bushing (B), positioning masts onto mounting frames.

W07283


A-Notch
B-Bushing

OUO6077,00019C3 -19-04FEB08-8/10

15. Dump bucket 10-20° so front wheels come off ground slightly.

W07282

OUO6077,00019C3 -19-04FEB08-9/10

NOTE: Make sure bushing is installed in inner mast hole before installing pin and retaining ring.

16. Install pin (C) in hole (A) and fasten with retaining ring (B).

17. Remove lifting straps and overhead hoist.

18. Extend lift cylinders and lift bucket from ground to ensure loader is properly mounted.


A-Hole
B-Retaining Ring
C-Pin

W07284

OUO6077,00019C3 -19-04FEB08-10/10
