OMW52222: 300, 300X and 300CX Loaders, Block File: OUO1078_0000082_19

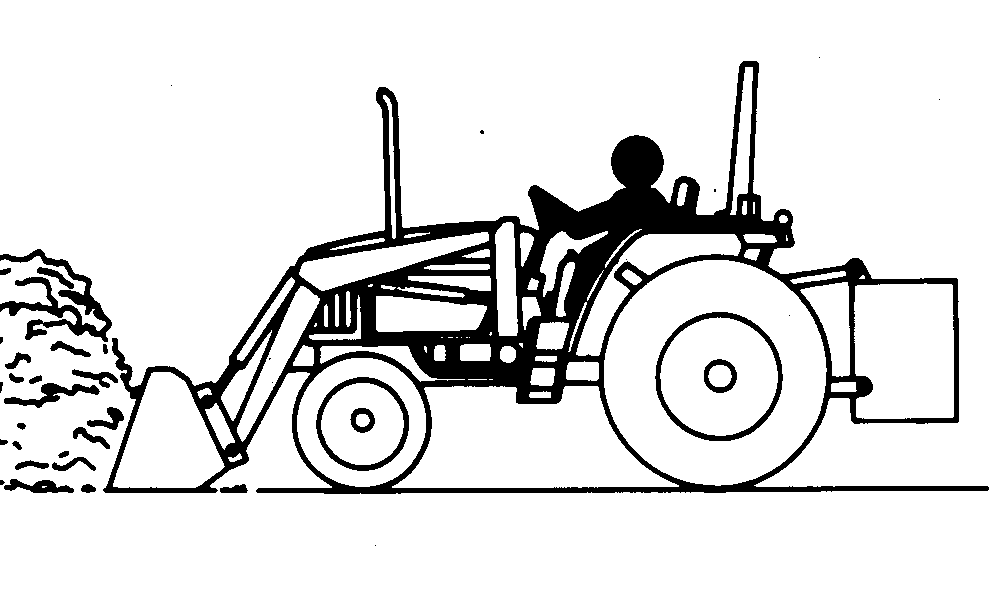

Approach and enter pile with a level bucket. If the pile is high, remove the top first.

OUO1078,0000082 -19-11JAN01-1/2

NOTE: Bucket top is parallel to bottom. Bucket is level when top is level. A bucket level indicator attachment is also included.

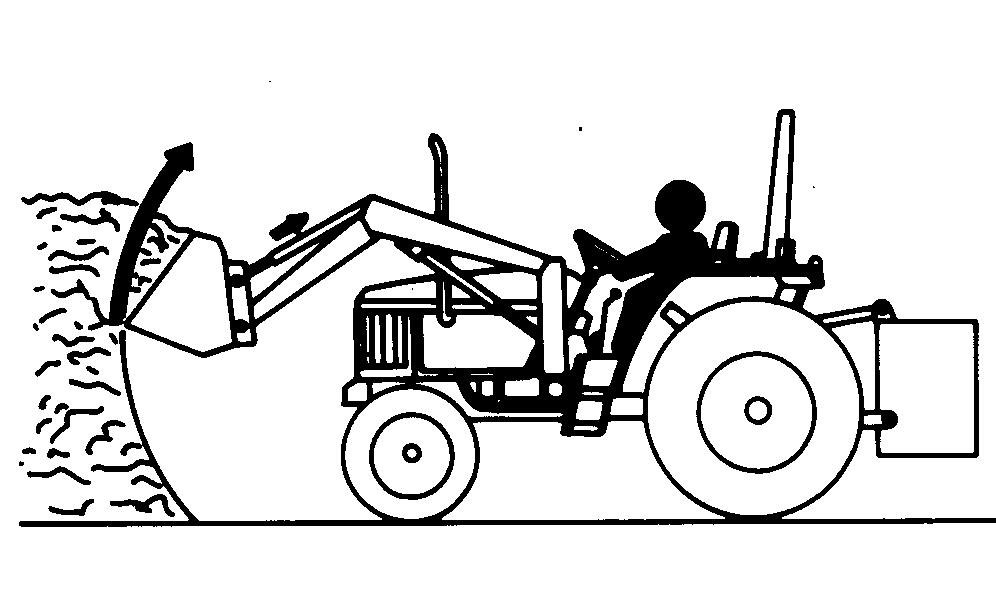

Move forward slowly, lifting the loader and rolling back bucket.

NOTE: Overfilling the bucket in heavy or packed material, may cause the loader to stall. If loader stalls, back tractor up or take less material.

OUO1078,0000082 -19-11JAN01-2/2
