Leveling and Scraping Forward

IMPORTANT: To avoid bending the bucket cutting edge on a solid object while scraping forward, position the bucket level or just below level. Use FLOAT to reduce wear on cutting edge when scraping concrete.

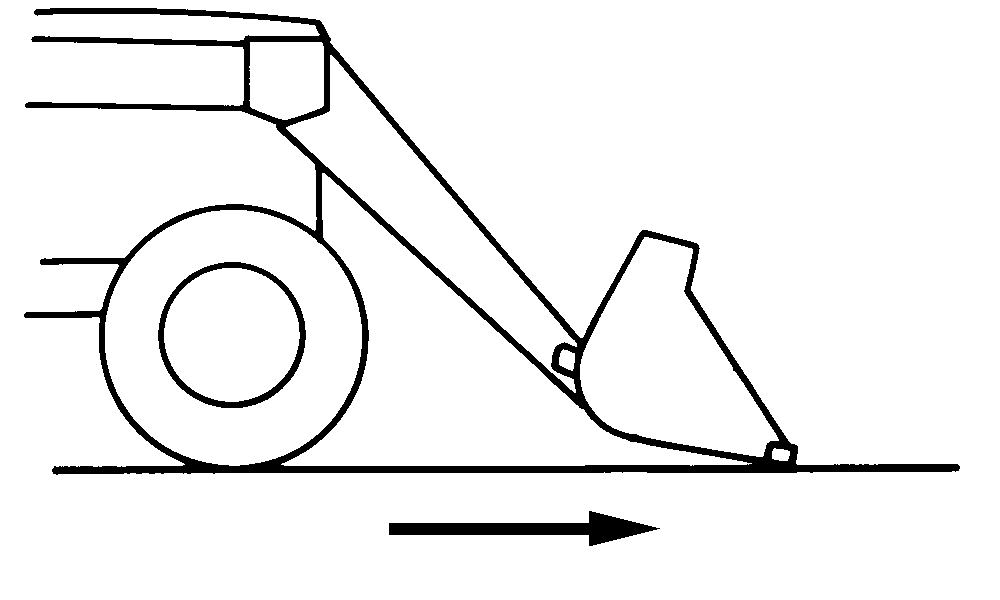

To level or scrape forward, position bucket level or slightly below level.

Use FLOAT to reduce down pressure and wear on cutting edge when scraping concrete.

OUO6038,0001590 -19-19MAR02-1/1
