Preoperating Checks

causym CAUTION: Escaping fluid under pressure can penetrate the skin causing serious injury. Relieve pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Keep hands and body away from pinholes and nozzles which eject fluids under high pressure. Use a piece of cardboard or paper to search for leaks. Do not use your hand.

If ANY fluid is injected into the skin, it must be surgically removed within a few hours by a doctor familiar with this type of injury or gangrene may result.

1. Check for loose hydraulic fittings.

2. Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly. Replace damaged hoses.

3. Check for hydraulic oil leaks. (See TIGHTENING PROCEDURE FOR FITTINGS in Service section.)

X9811

OUO6038,0001B4F -19-01DEC05-1/3

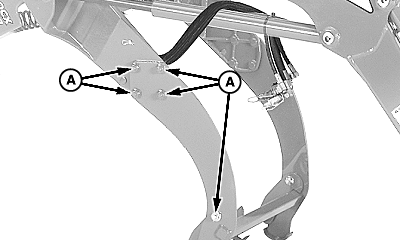

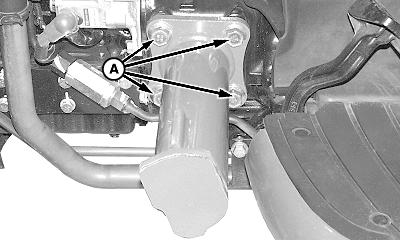

4. Check for missing or loose hardware (A). (See EVERY 50 HOURS in Lubrication and Maintenance section for correct hardware torque.)


A-Hardware

W07072

3000 TWENTY Series Tractor Shown

W06985

OUO6038,0001B4F -19-01DEC05-2/3

5. Check tractor transmission/hydraulic fluid level. (See your tractor Operator's Manual.)

6. Lubricate the loader. (See Lubrication and Maintenance section.)

W07066

3203, 3000 TWENTY Series

W07067

4000 Series Tractors

W06941

70 Series Tractors

W06942

790 Tractor

OUO6038,0001B4F -19-01DEC05-3/3
