Accessing Front of Tractor-300 Loader (770/790 and 3203 Tractors)

770 and 790 Tractors

NOTE: Procedure can be performed with or without loader attached. Loader removed for photographic purposes.

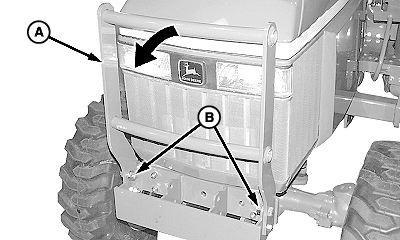

1. Remove cap screw and nuts (B) from hood guard (A). Tilt hood guard forward to access front grille (C).

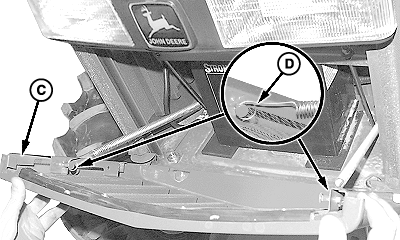

2. Pull out grille and disconnect two springs (D) to access/service battery.


A-Hood Guard
B-Cap Screws and Nuts
C-Grille
D-Springs

W06945
W06977

OUO6038,0001B52 -19-15DEC05-1/2

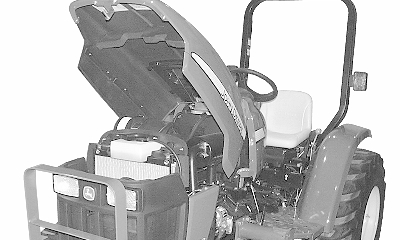

3203 Tractor: Hood guard does not fold down. Hood can be raised with hood guard in place.

W07720

OUO6038,0001B52 -19-15DEC05-2/2
