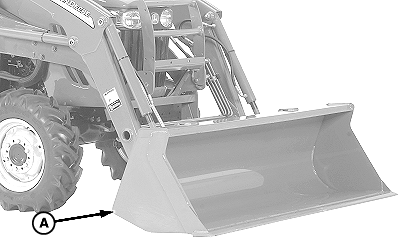

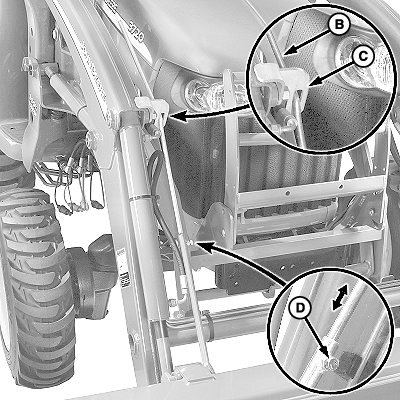

Adjusting Bucket Level Indicator1. Position bucket/attachment (A) level on ground.2. Loosen cap screw (D) and adjust rod (B) in tube so that detent rests in the bottom of guide bracket (C). 3. Tighten cap screw to hold rod securely in place.
|
|
OUO6038,0001B5E -19-14OCT04-1/1 |
