Setting Front Tread Width

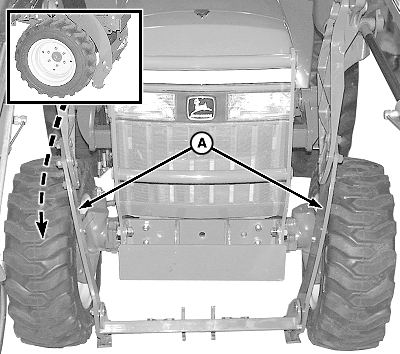

300 Loader on 770/790: Set wheels at maximum tread setting (invert wheels) to obtain maximum clearance between tires and parking stand (A) when loader is being detached or attached. (Refer to SELECTING FRONT TIRE ROLLING DIRECTION in Operating section of tractor Operator's Manual.)


A-Parking Stand

W06986

OUO6038,0001B5F -19-23NOV05-1/2

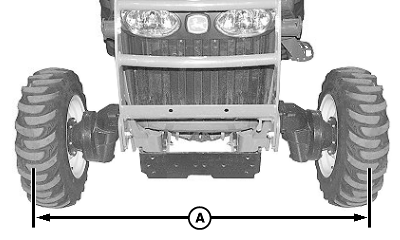

300 Loader on 3203; 300X and 300CX Loaders: Front tread width (A) should be set to the same tread width as rear tires whenever possible. (See SELECTING REAR TREAD WIDTH in this section.)

There are no minimum tread settings.


A-Tread Width

W07091

OUO6038,0001B5F -19-23NOV05-2/2
