Attaching Ballast Box to Tractor with Quick Coupler Hitch

causym CAUTION: To help prevent personal injury from tractor instability, be sure to attach ballast box after loader has been installed.

To avoid bodily injury or machine damage whenever the ballast box is attached, put transmission in PARK position and check the full range of hitch for interference or binding.

Do not stand between tractor and ballast box.

1. Slowly push hitch control lever to lower hitch until quick coupler hooks are lower than ballast box hitch pins.

2. Back up tractor to ballast box.

OUO6038,0001B6D -19-14OCT04-1/2

IMPORTANT: Check spring loaded clips on quick coupler to be sure latches are free and working properly.

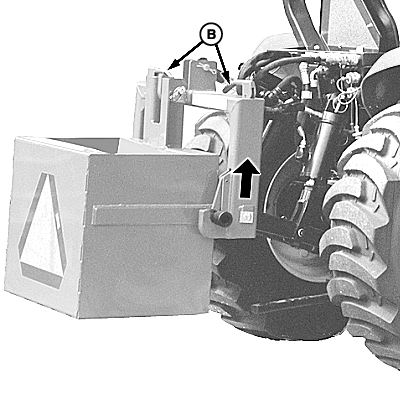

3. Make sure latch control levers (B) are down (as shown).

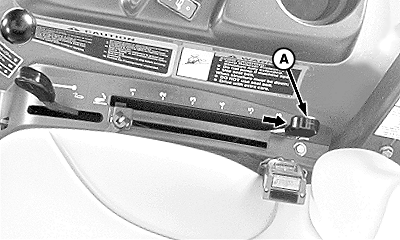

4. Slowly pull hitch control lever (A) to engage ballast box hitch pins in quick coupler hooks. Raise ballast box and check for interference. Lower ballast box to ground and adjust if necessary.


A-Hitch Control Lever
B-Latch Control Levers

W07039

3000 TWENTY Series Tractor Shown

W07041

OUO6038,0001B6D -19-14OCT04-2/2
