Every 8 Hours or Daily

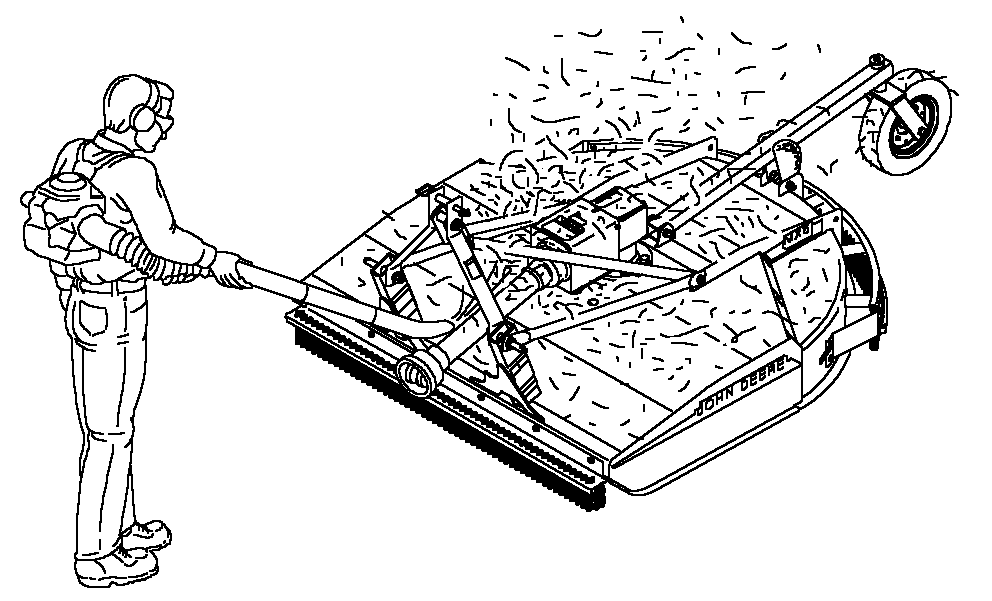

Keeping Cutter Clean

IMPORTANT: Avoid machine damage due to build up of debris, if any, on cutter deck. Clean cuttings from deck DAILY or more often if necessary.

Build up of material may interfere with driveline, cause overheating of gear case resulting in component damage or cause deck to be corroded due to moisture in material.

W03738

OUMX005,0001E9F -19-24AUG07-1/4

W07516

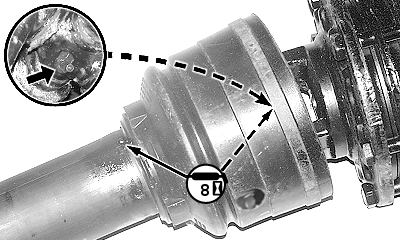

Driveline-to-Gear Case End
W07517

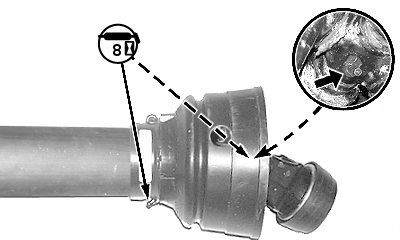

Driveline-to-Tractor End
PTO Driveline

OUMX005,0001E9F -19-24AUG07-2/4

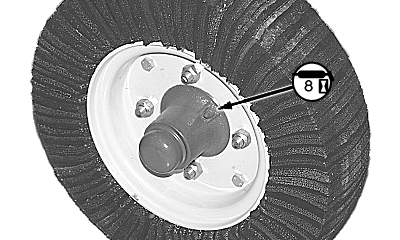

Tailwheel Bearings
W05657

OUMX005,0001E9F -19-24AUG07-3/4

Checking Gear Case Oil Level

causym CAUTION: Before servicing machine refer to LUBRICATING AND MAINTAINING MACHINE SAFELY at the beginning of this section.

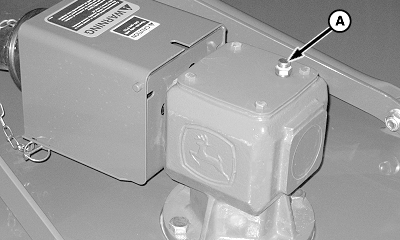

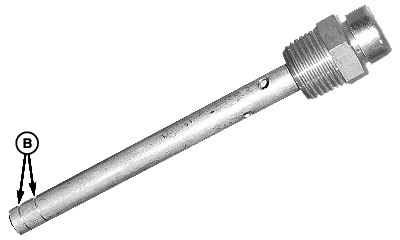

Remove dipstick/vent (A). Oil level should be between lines (B). Add John Deere GL-5 GEAR LUBRICANT, or equivalent, if necessary.

Install dipstick/vent.


A-Dipstick/Vent
B-Lines

W08908
W08913

OUMX005,0001E9F -19-24AUG07-4/4
