Every 10 Hours or Daily

Keeping Cutter Clean

IMPORTANT: Avoid machine damage due to build up of debris on cutter deck. Clean debris from deck daily or more often if necessary.

Build-up of debris may interfere with drivelines and cause gear cases to overheat resulting in damaged components. Rusting of deck can be caused by moisture in built-up debris.

Clean all debris from deck at the end of each day's operation.

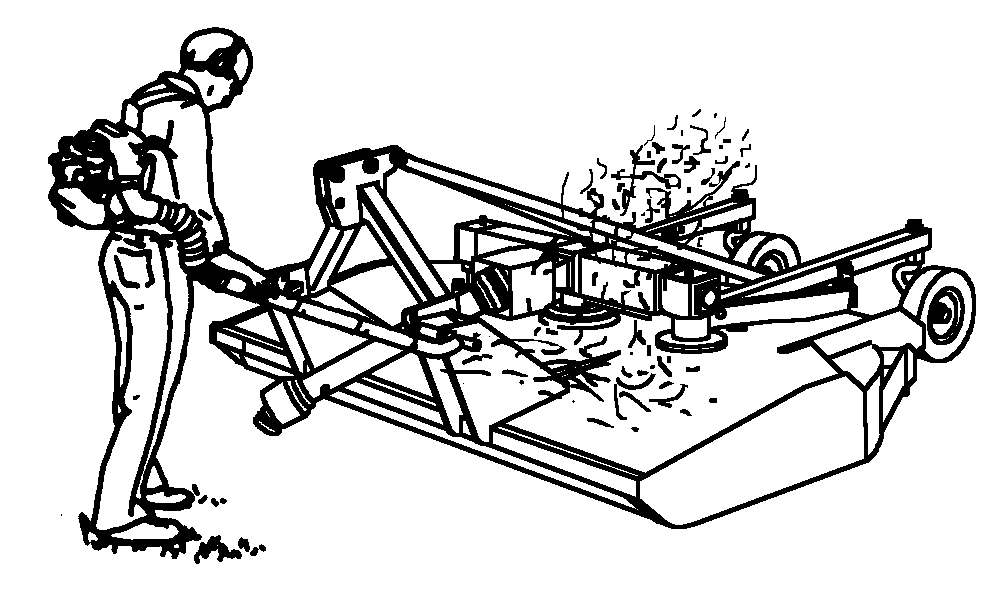

W03740

OUMX005,0001E58 -19-29AUG07-1/5

Checking Gear Case Oil Level

NOTE: Perform the following procedures on all gear cases with machine on level surface. Right-hand side shown.

1. Remove dipstick/vent (A). Oil level should be between lines (B). Add John Deere GL-5 GEAR LUBRICANT, or equivalent, if necessary.

2. Install dipstick/vent.

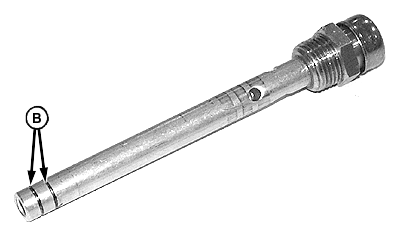

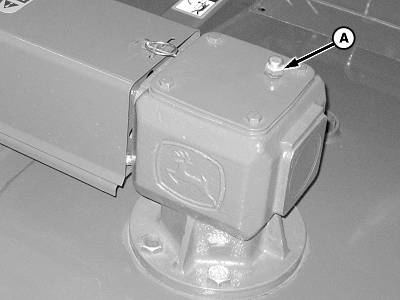

A-Dipstick/Vent
B-Lines

W08955
W03432

OUMX005,0001E58 -19-29AUG07-2/5

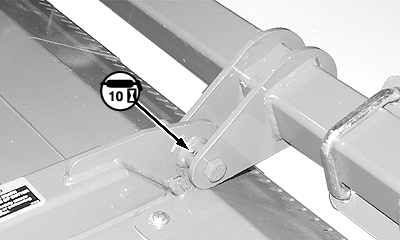

W07909

Right-Hand Side, Semi-Mount Shown

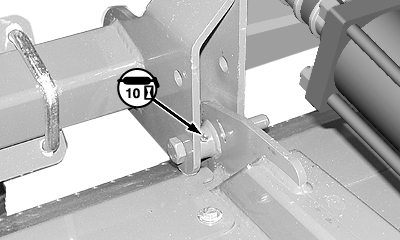

W07910

Left-Hand Side, Semi-Mount Shown
Axle Beam Pivots (Pull-Type and Semi-Mount)

OUMX005,0001E58 -19-29AUG07-3/5

W07903

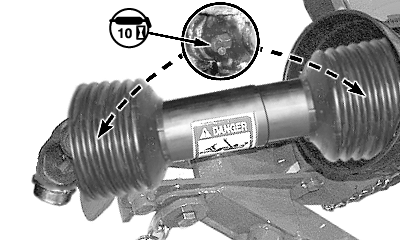

Main PTO Driveline

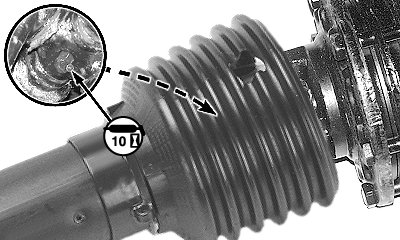

W07952

Intermediate Driveline-to-Gear Case End
PTO Driveline-Pull-Type

OUMX005,0001E58 -19-29AUG07-4/5

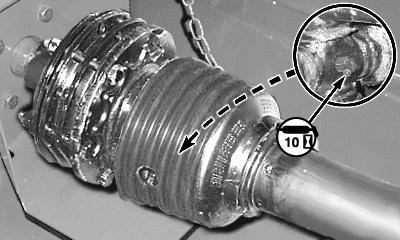

W07953

Driveline-to-Gear Case End

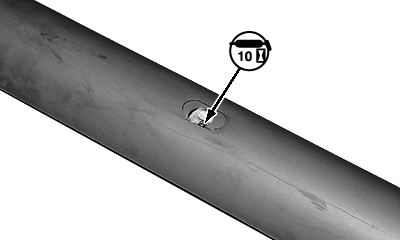

W07954

Driveline Middle
PTO Driveline-Lift-Type and Semi-Mount
W07955

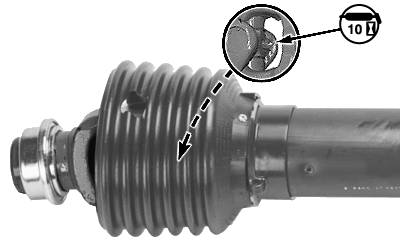

Driveline-to-Tractor End

OUMX005,0001E58 -19-29AUG07-5/5
