Removing Material from a Pile

W01143
W01143-UN-12AUG93

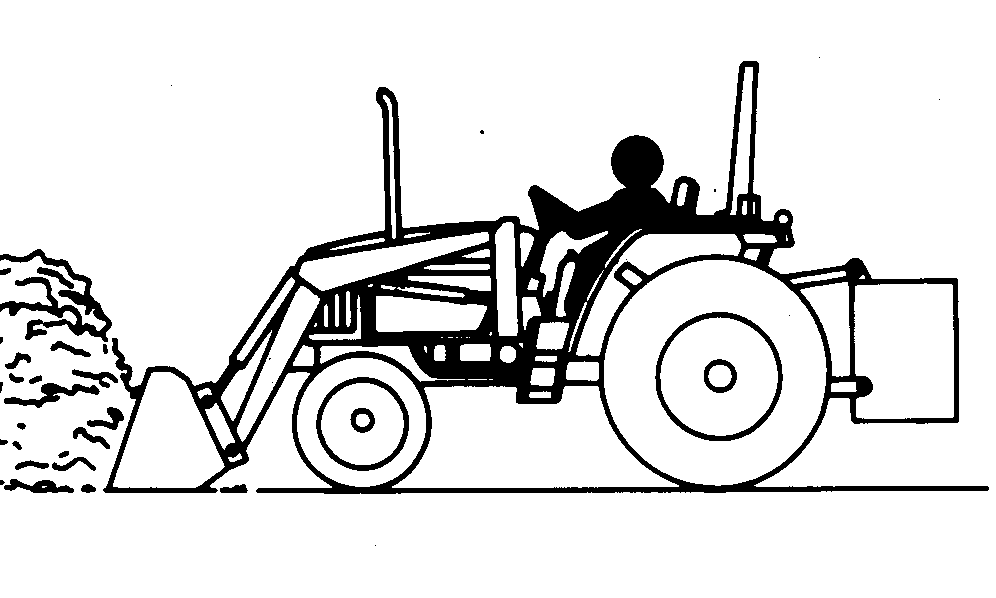

Approach and enter pile with a level bucket. If the pile is high, remove the top first.

NOTE: Bucket top is parallel to bottom. Bucket is level when top is level. A bucket level indicator attachment is also included.

W01142
W01142-UN-12AUG93

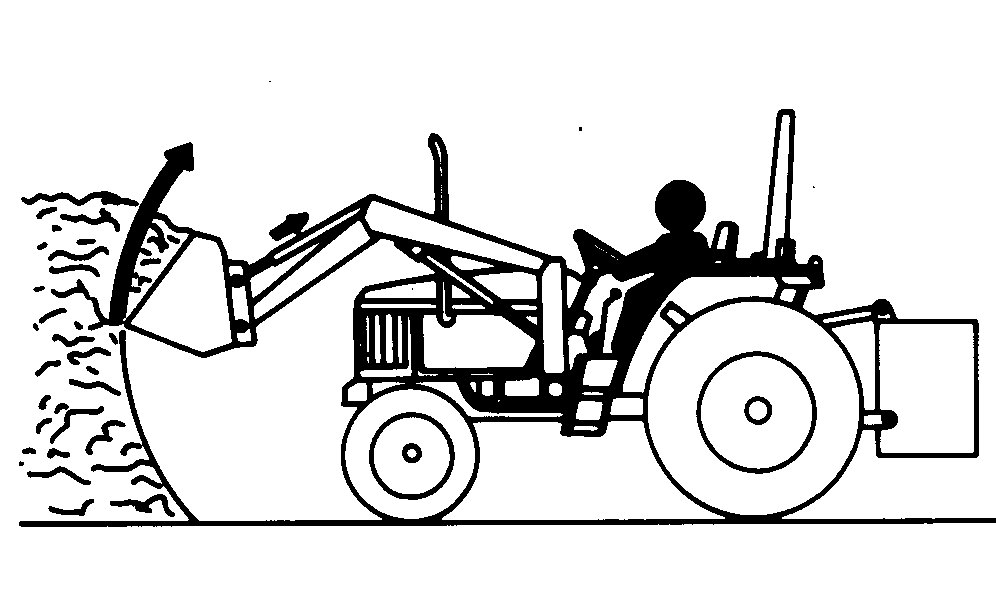

Move forward slowly, lifting the loader and rolling back bucket.

NOTE: Overfilling the bucket in heavy or packed material, may cause the loader to stall. If loader stalls, back tractor up or take less material.

OUO1078,0000082-19-20010111
