Loading Operations

W01145
W01145-UN-12AUG93

W01144
W01144-UN-12AUG93

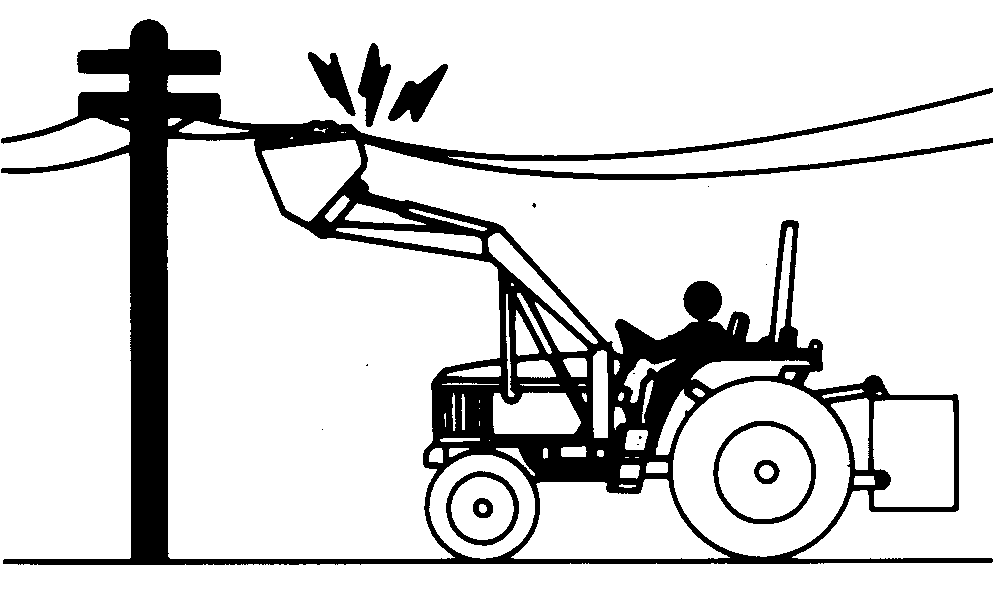

CAUTION: Help prevent bodily injury or death from electrical contact. Beware of lift clearance when raising loader to maximum height. Beware of low electrical wires when loader is raised. Do not dismount from tractor if loader is in contact with electrical source.

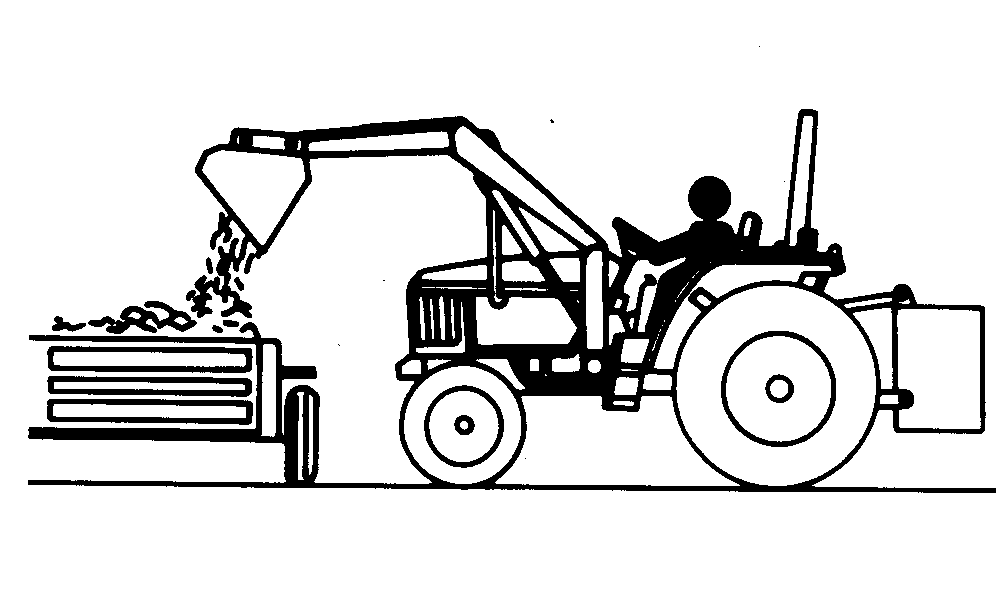

  1. Carry load low to help prevent spillage and increase tractor-loader stability.

  2. Raise loader to required height with bucket rolled back.

  3. Dump load.

  4. CAUTION: Do not move the loader control lever to "FLOAT" to lower the loader. Loss of control results and the loader will fall to the ground due to its own weight.

    Lower heavy load slowly to avoid possible tractor or loader damage.

OUO1078,0000083-19-20010111
