Installing Hitch Pin Bushings on Ballast Box for Category 1 Quick Coupler Hitch

NOTE: Install bushings on both hitch pins. Right-hand side shown.

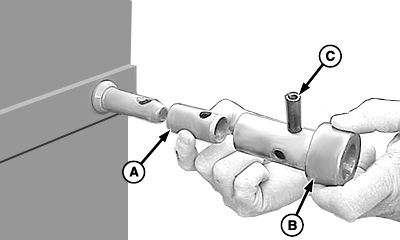

  1. W04939
    W04939-UN-22JUL02

    A - Bushing

    B - Bushing

    C - Spring Pin

    Install bushing (A) over hitch pin with cross hole as shown.


  2. Install bushing (B) as shown.

  3. Align holes in bushings with hole in hitch pin and install spring pin (C).

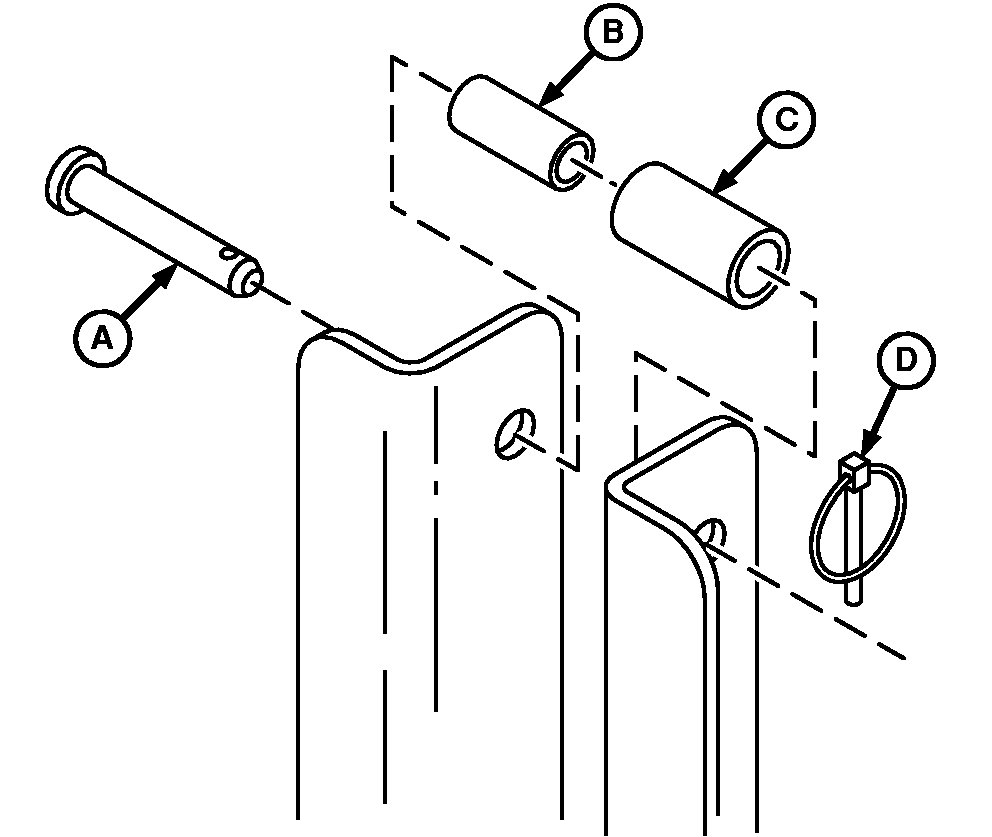

  4. W05063
    W05063-UN-05FEB02

    A - Center Link Pin

    B - Bushing (Small)

    C - Bushing (Large)

    D - Quick-Lock Pin

    Assemble bushings (B and C).


  5. Insert center link pin (A) through ballast box mast and bushing assembly. Fasten with quick-lock pin (D).

OUO6038,0001573-19-20020315
