Using Ballast Box

W05950-UN-24MAR03

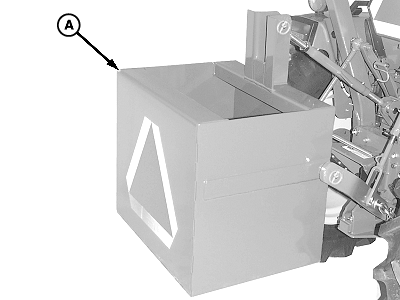

A - Ballast Box

CAUTION: To help prevent bodily injury or death from tractor/loader rollover, add required amount of ballast to tractor. (See Preparing the Tractor section.)

Check Prepare the Tractor section for complete instructions for proper ballasting of tractor for loader operation.

Use ballast box (A) in the rear-most position (approximately 610 mm [24 in.] off the ground).
