Identifying Hose Connections

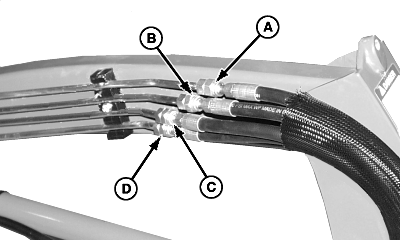

W07261-UN-01MAR05
W07409-UN-05MAY05
2210, 2305, 2320, 2520, and 2720 Tractor Couplers

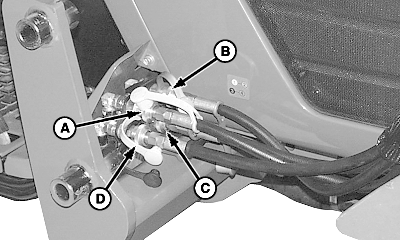

W07262-UN-01MAR05
4100, 4110, and 4115 Tractor Couplers
Identify hoses by installing color-coded caps on end of hoses.Ports on plate that holds couplers on tractor are identified by both numbers and colors.
Key | Port | Plug/Cap Color | Hydraulic Function |
|---|---|---|---|
A | 1 | Black | Bucket Cylinder—Rod End |
B | 2 | Yellow | Bucket Cylinder—Head End |
C | 4 | Blue | Lift Cylinder—Head End |
D | 3 | Red | Lift Cylinder—Rod End |
OUO6038,0001E7A-19-20091215 |
