Detaching Loader

  1. CAUTION:

    W14000
    W14000-UN-05OCT88

    To help prevent personal injury caused by falling or shifting loader, always detach loader on a hard level surface. Do not detach loader equipped with a pallet fork. Use of a materials bucket is recommended.

    Remove ballast box. (See procedure in this section.)


  2. Be sure loader is equipped with a materials bucket.

  3. Start tractor engine.

  4. Release parking brake and/or place transmission in NEUTRAL.

  5. Dump bucket 10—20° and lower to ground.

  6. Retract lift cylinders, raising front wheels 25—50 mm (1—2 in.) off the ground.

  7. W07232
    W07232-UN-23FEB05

    Right-Hand Side Shown

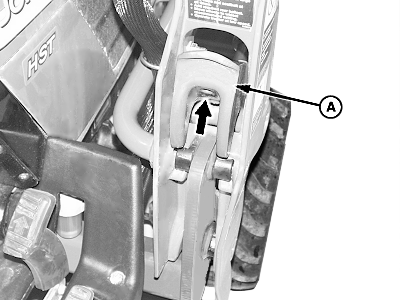

    A - Latch

    Move both loader mast latches (A) upward into UNLOCKED position.


  8. W07233
    W07233-UN-14APR05

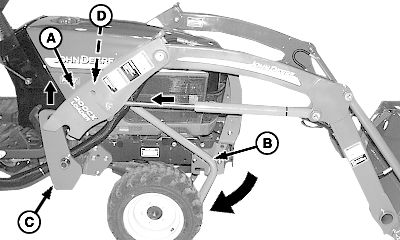

    A - Mast

    B - Parking Stand

    C - Frame

    D - Latch

    Extend loader lift cylinders until parking stand (B) contacts ground, masts (A) completely lift off frames (C) and latches (D) automatically snap into locked position.


  9. Engage tractor parking brake and/or place transmission in PARK.

  10. Shut off tractor engine and remove key.

  11. CAUTION:

    X9811
    X9811-UN-23AUG88

    To help prevent injury from escaping hydraulic oil under pressure, relieve pressure in the system.

    Move control lever(s) back and forth and side-to-side (if applicable) several times. (See your tractor Operator’s Manual.)


  12. W07405
    W07405-UN-05MAY05

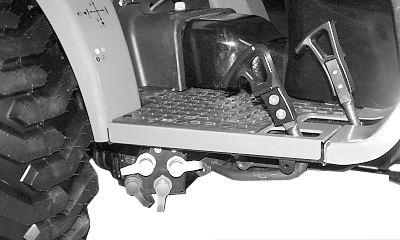

    2210, 2305, 2320, 2520 and 2720 Tractors

    W07250
    W07250-UN-14APR05

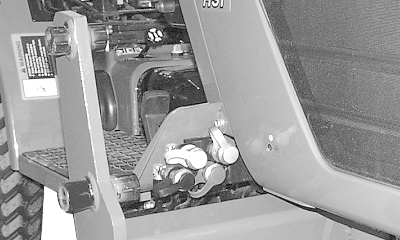

    4100, 4110 and 4115 Tractors

    Disconnect hoses at couplers and install dust plugs and caps.


  13. W07300
    W07300-UN-18MAR05

    A - Hose Guide

    2210, 2305, 2320, 2520 and 2720 Tractors: Remove hydraulic hoses from guide (A).


  14. IMPORTANT:

    W07237
    W07237-UN-23FEB05

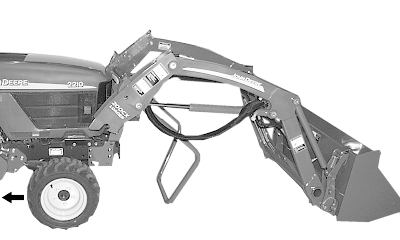

    To avoid hose damage, be sure hoses do not catch on tractor when moving away from loader.

    Store hoses on lift cylinder, DO NOT lay them on the ground.


  15. Start tractor engine.

  16. Disengage tractor parking brake and place transmission in REVERSE. Slowly move tractor away from loader.
