Attaching Loader

1.
   W07239-UN-28FEB05

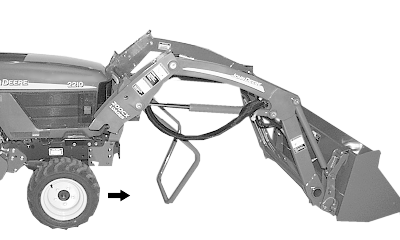

   Drive tractor slowly, straight into loader.

---




2. Align masts with mounting frames.

3. Engage tractor parking brake and/or place transmission in PARK.

4. Shut off tractor engine and remove key.

5. CAUTION:


   X9811-UN-23AUG88

   To help prevent injury from escaping hydraulic oil under pressure, relieve pressure in the system.

   Move control lever(s) back and forth and side-to-side (if applicable) several times. (See your tractor Operator’s Manual.)

---




6.
   W09281-UN-01FEB08

   2210, 2305, 2320, 2520 and 2720 Tractors


   W07366-UN-15APR05

   4100, 4110 and 4115 Tractors

   A - Hose Guide

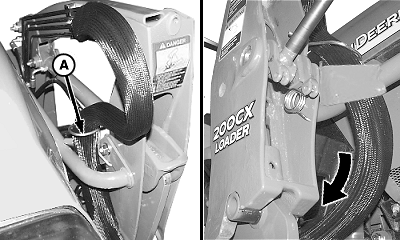

   Make sure hoses are routed through hose guide (A), as shown.

---




7. CAUTION: Help prevent personal injury caused by unexpected loader movement. Anticipated loader movement responds to control lever only if hoses are connected correctly.

   NOTE: Hose connections are identified by matching the color-coded cap on the hose end with the same color-coded plug on the control valve coupler. If caps are missing, see IDENTIFYING HOSE CONNECTIONS in Service section.


   W07241-UN-24FEB05

   2210, 2305, 2320, 2520 and 2720 Tractors


   W07287-UN-10MAR05

   4100, 4110 and 4115 Tractors

   A - Hose Guide

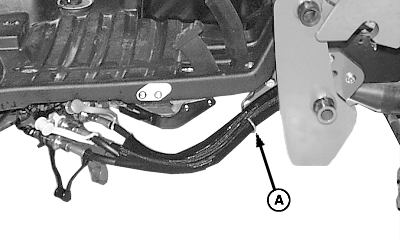

   2210, 2305, 2320, 2520 and 2720 Tractors: Route hoses above mounting frames and through hose guide (A).

---




8. Connect hoses using color-coded dust caps matching numbers and/or colors on decal by coupler plate.

9. NOTE: It may be necessary to drive tractor forward slowly to keep masts/frames in line while performing the following procedures.


   W07242-UN-24FEB05

   Right-Hand Side Shown

   A - Notch

   B - Bushing

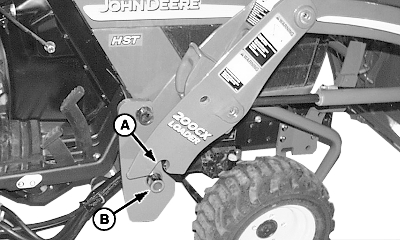

   Be sure bushing (B) on mounting frame is aligned with notch (A) in masts.

---




10. Start tractor engine.

11. Release parking brake and/or place transmission in NEUTRAL.

12. IMPORTANT: Make sure masts are fully seated on mounting frames.


    W07243-UN-24FEB05

    A - Mast

    B - Parking Stand

    C - Weight Bracket

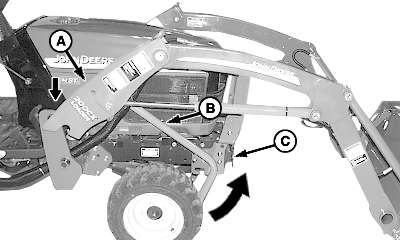

    Slowly retract lift cylinders. Masts (A) will lower onto mounting frames and parking stand (B) will raise up below weight bracket (C).

---




13.
    W07244-UN-24FEB05


    W07245-UN-28FEB05

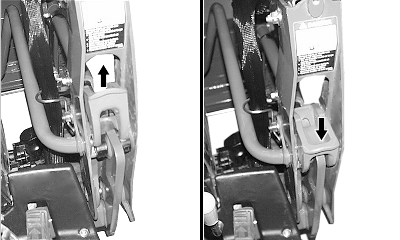

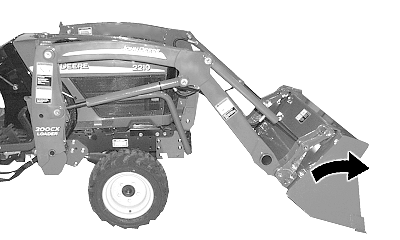

    Dump bucket 10—20° and retract lift cylinders until loader masts move back and latches lock over mounting frame bushings.

---




14. Extend lift cylinders and lift bucket from ground to ensure loader is properly mounted.

15. Add appropriate ballast. (See Preparing the Tractor section.)

16. Engage tractor parking brake and/or place transmission in PARK.

17. Shut off tractor engine and remove key.
