Adjusting Bucket Level Indicator

1.
   W07265-UN-01MAR05


   W07410-UN-05MAY05

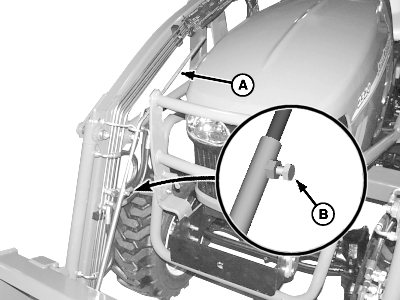

   A - Rod

   B - Cap Screw

   Position bucket/attachment level on ground.

---




2. Loosen cap screw (B).

3. Adjust rod (A) up or down until bend rests in guide bracket.

4. Tighten cap screw to hold rod securely in place.
