Attach Loader to Tractor—200CX

1.

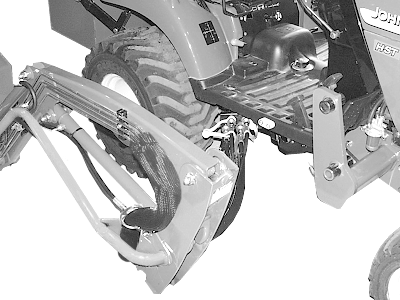

   W09283-UN-03MAR08


   X9811-UN-23AUG88

   Start tractor engine.

---




2. Drive tractor slowly to right-hand side of loader.

3. Engage tractor parking brake and/or place transmission in PARK.

4. Shut off tractor engine and remove key.

5. CAUTION: To help prevent injury from escaping hydraulic oil under pressure, relieve pressure in the system.

   Move control lever(s) back and forth and side-to-side (if applicable) several times. (See your tractor Operator’s Manual.)

6. Connect hydraulic hoses to couplers on tractor using color-coded caps on hoses to match numbers and/or colors on decal by coupler plate. (See IDENTIFYING HOSE CONNECTIONS in Service section.)

7. Start tractor engine.

8.

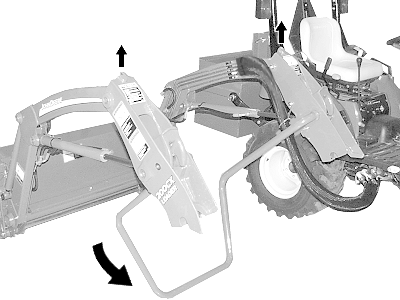

   W09284-UN-03MAR08

   Raise loader from ground by extending lift cylinders. Parking stand should contact ground and extend rearward toward tractor.

---




9. Shut off tractor engine and remove key.

10. CAUTION: To help prevent injury from escaping hydraulic oil under pressure, relieve pressure in the system.

    Move control lever(s) back and forth and side-to-side (if applicable) several times. (See your tractor Operator’s Manual.)

11. Disconnect hydraulic hoses.

12. Attach loader to tractor. (See ATTACHING LOADER in Attach Loader [200CX] section.)
