Attach Loader to Tractor—200X

1.
   W07276-UN-08MAR05

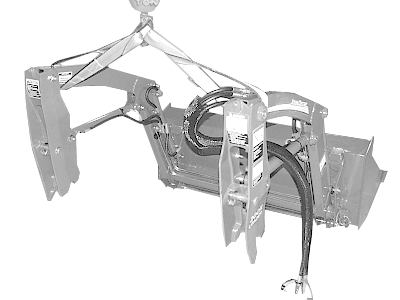

   Lift rear of loader off ground using overhead hoist and lifting straps, as shown.

---




2. NOTE: Make sure bushing (C) is installed in inner mast hole.


   W07277-UN-18APR05

   A - Retaining Ring

   B - Pin

   C - Bushing

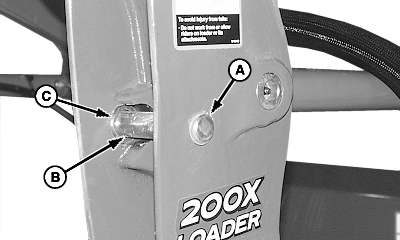

   Remove retaining ring (A) and pin (B) from each loader mast.

---




3.
   W07278-UN-09MAR05

   Start tractor engine.

---

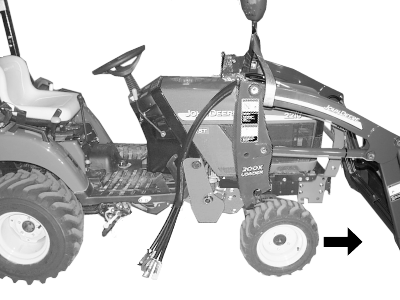

4. Drive tractor slowly under loader, close enough to connect hydraulic hoses.

5. Engage tractor parking brake and/or place transmission in PARK.

6. Shut off tractor engine and remove key.

7. CAUTION:


   X9811-UN-23AUG88

   To help prevent injury from escaping hydraulic oil under pressure, relieve pressure in the system.

   Move control lever(s) back and forth and side-to-side (if applicable) several times. (See your tractor Operator’s Manual.)

---




8.
   W09285-UN-01FEB08

   2210, 2305, 2320 and 2520 Tractors


   W07366-UN-15APR05

   4100, 4110 and 4115 Tractors

   A - Hose Support

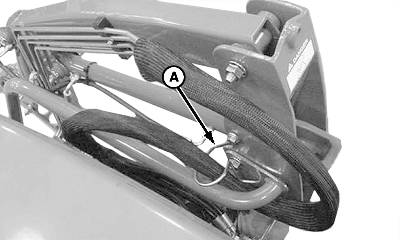

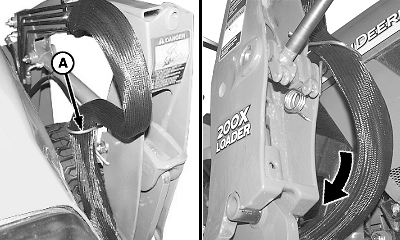

   Route hoses through hose support (A) on inside of right-hand loader mast, as shown.

---




9.
   W07286-UN-06MAY05

   2210, 2305, 2320, 2520 and 2720 Tractors


   W07287-UN-10MAR05

   4100, 4110 and 4115 Tractors

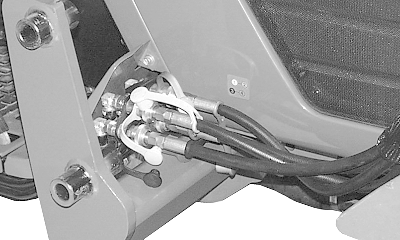

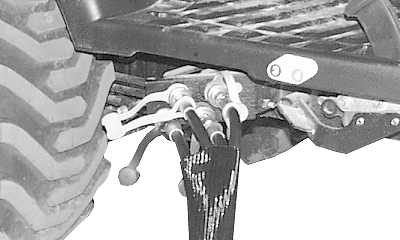

   Connect hydraulic hoses to couplers on tractor using color-coded caps on hoses to match numbers and/or colors on decal by coupler plate. (See IDENTIFYING HOSE CONNECTIONS in Service section.)

---




10.
    W07300-UN-18MAR05

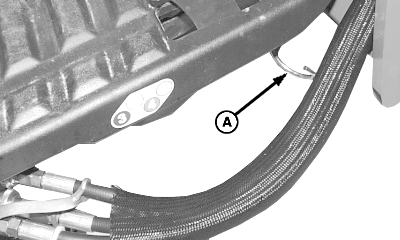

    A - Hose Guide

    2210, 2305, 2320, 2520 and 2720 Tractor: Place hydraulic hoses into guide (A).

---




11. Start tractor engine.

12.
    W07283-UN-10MAR05

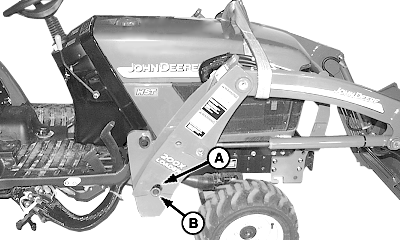

    A - Notch

    B - Bushing

    Extend loader lift cylinders.

---




13. Drive tractor slowly, straight into loader so loader masts line up with mounting frames, as shown.

14. NOTE: It may be necessary to drive tractor forward/backward slowly or lower overhead hoist to keep masts/frames in line while performing the following procedures.

    Slowly retract lift cylinders fully. Notch (A) will catch on bushing (B), positioning masts onto mounting frames.

15.
    W07282-UN-10MAR05

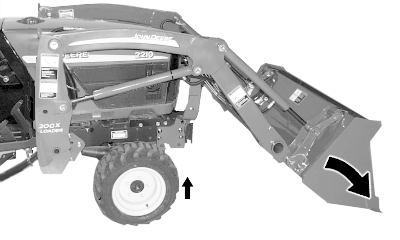

    Dump bucket 10—20° so front wheels come off ground slightly.

---




16. NOTE: Make sure bushing is installed in inner mast hole before installing pin and retaining ring.


    W07284-UN-10MAR05

    A - Hole

    B - Retaining Ring

    C - Pin

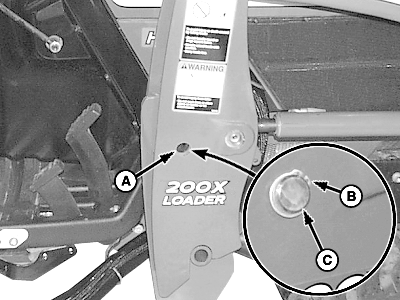

    Install pin (C) in hole (A) and fasten with retaining ring (B).

---




17. Remove lifting straps and overhead hoist.

18. Extend lift cylinders and lift bucket from ground to ensure loader is properly mounted.
