Identifying Hose Connections—300CX Loader/4105 Tractor

W06946
W06946-UN-17SEP04

W08906
W08906-UN-17AUG07

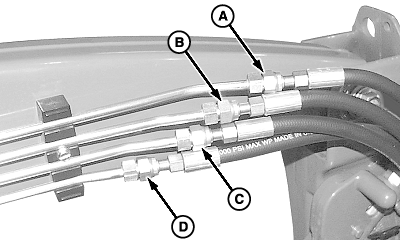

Identify hoses by installing color-coded caps on end of hoses.

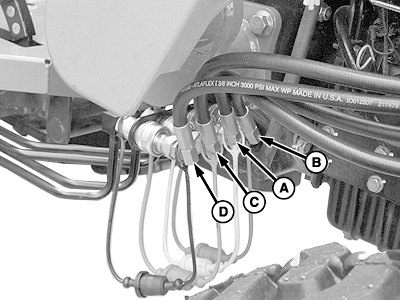

Ports on plate that holds couplers on tractor are identified by both numbers and colors.

Key

Port

Plug/Cap Color

Hydraulic Function

A

1

Black

Bucket Cylinder—Rod End

B

2

Yellow

Bucket Cylinder—Head End

C

4

Blue

Lift Cylinder—Head End

D

3

Red

Lift Cylinder—Rod End

OUO6038,0001E7D-19-20091216
