Operating Loader with Multi-Function Control Lever
NOTE: Single-lever ICV (option) shown. Refer to tractor Operator's Manual for factory-installed multi-function control lever.
W03253-UN-17FEB99
W09722-UN-18AUG08

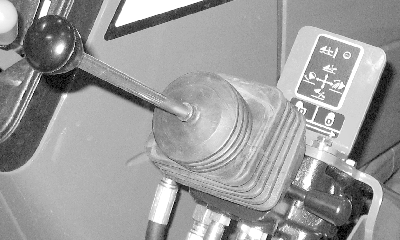

Single Lever ICV (Option)
Operate loader from operator's seat only. Remain at controls until operating cycle is complete.
CAUTION: To help prevent personal injury caused by unintentional
lowering of loader, do not use "FLOAT" position to lower loader. Loss
of control results and the loader will fall to the ground due to it’s
own weight.
NOTE: Refer to symbols on labels located near multi-function control lever.
Lever returns to NEUTRAL by itself from all positions except FLOAT. Pull lever back/down to release from FLOAT.
|

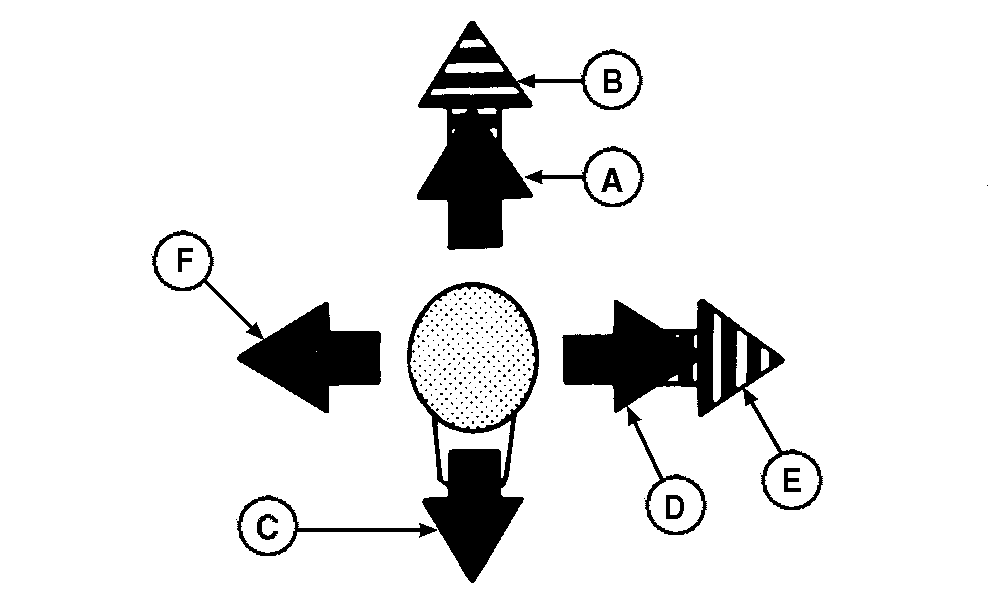

Key |
Lever Movement |
Loader Operation |
|---|---|---|
|
A |
Forward/Up |
Boom Lower |
|
B |
Locked Forward/Up |
Boom Float |
|
C |
Back/Down |
Boom Raise |
|
D |
To Right-Hand Side |
Bucket Dump |
|
E |
To Full Right-Hand Side1 |
Bucket Fast Dump |
|
F |
To Left-Hand Side |
Bucket Roll Back |
NOTE: Oil flow limitations may not allow you to do two loader operations at one time such as RAISE and ROLL BACK. The operation that requires the least hydraulic force will move first.
Operate hydraulic control to relieve system pressure after stopping engine.
NOTE: Multi-Function control lever has transport lock. (See LOCKING OUT MULTI-FUNCTION CONTROL LEVER in this section.)
|
1 Slightly
extra effort is required to move lever to the full right-hand position.
(Bucket cylinder force is reduced in Fast Dump. Use it only for dumping
materials.)
|
