Attach Loader

1.

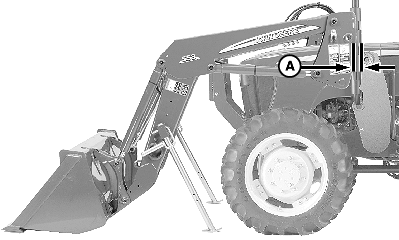

   W09732-UN-22AUG08

   A - Distance, 75 mm (3 in.)

   Attach ballast box. (See procedure in Preparing the Tractor section.)

---




2. Drive tractor slowly, between loader masts.

3. Stop tractor with backs of loader masts approximately 75 mm (3 in.) (A) ahead of fronts of mounting frames (B).

4. Engage tractor parking brake and/or place transmission in PARK.

5. Shut off tractor engine and remove key.

6. CAUTION:


   X9811-UN-23AUG88

   Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high pressure fluids.

   If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene may result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.

   Move control lever(s) back and forth and side-to-side (if applicable) several times to relieve hydraulic pressure. (See tractor Operator's Manual.)

---




7. CAUTION:

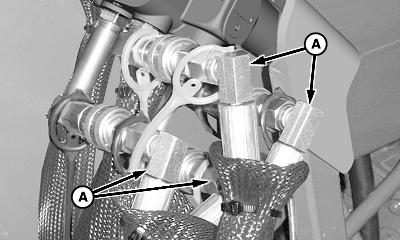

   W09730-UN-22AUG08

   Single-Lever ICV (Option)

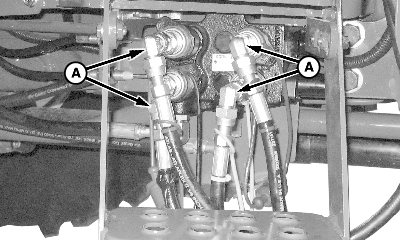

   W09731-UN-22AUG08

   Mid-Mount Valve

   A - Loader Hoses

   Help prevent personal injury caused by unexpected loader movement. Anticipated loader movement responds to control lever only if hoses are connected correctly.

   IMPORTANT: Before connecting hoses, make sure that fittings are free of dirt and debris.

   NOTE: Hose connections are identified by matching the color-coded cap on the hose end with the same color-coded plug on the control valve coupler. If caps are missing or not equipped, see IDENTIFYING HOSE CONNECTIONS in Service section for replacements.

   Attach Mid-Mount Couplers (if equipped): Connect hoses (A) using color-coded dust caps to match hoses to couplers.

---




8.

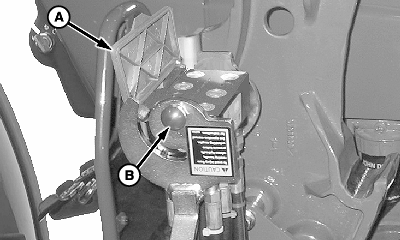

   W20029-UN-10OCT08

   A - Cover

   B - Knob

   Connect Multicoupler (5M Series and 5105ML tractors, if equipped):

   1. Raise cover (A).

   2. Push red knob (B) IN and rotate lever rearward and down, as shown.

   ---




   3. IMPORTANT:

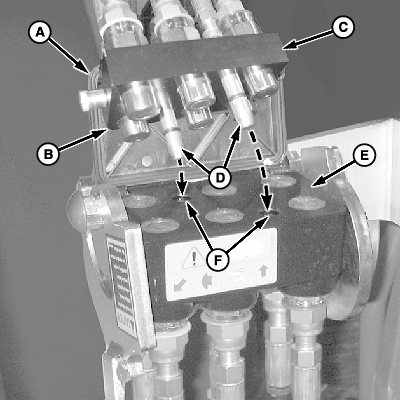

      W20030-UN-10OCT08

      Multicoupler mating halves must align properly or damage to couplers can occur.

      Place loader coupler half (C), with chamfered edge (B) toward cover (A), onto tractor coupler (E). Make sure locating pins (D) on loader coupler fit into corresponding holes (F) in tractor coupler (E).

   ---




   4.

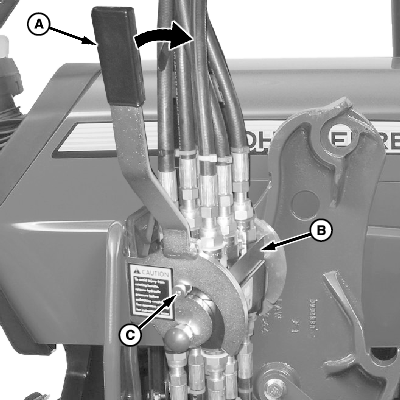

      W20031-UN-10OCT08

      A - Lever

      B - Coupler, Loader Half

      C - Pin (1 each side)

      Rotate lever (A) to engage pins (C) on loader coupler half (B) locking halves together.

---




9. Start tractor engine.

10. Place transmission in NEUTRAL, to allow tractor movement, and release parking brake.

11.

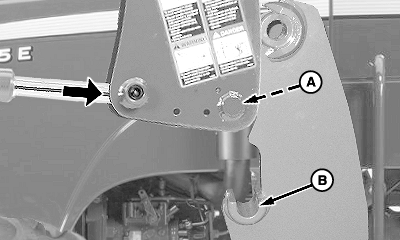

    W09733-UN-04SEP08

    A - Pin (1 each side)

    B - Saddle (1 each side)

    Slowly extend lift cylinders until pins (A) of masts contact front of frame directly above saddles (B).

---




12.

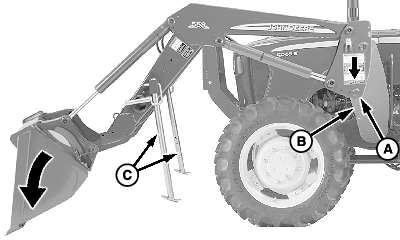

    W09735-UN-22AUG08

    A - Mast

    B - Mounting Frame

    C - Parking Stands

    Slowly dump bucket until masts (A) seat in mounting frames (B) on both sides, and stands (C) are slightly off ground.

---




13. Engage tractor parking brake and/or place transmission in PARK and shut off tractor engine.

14.

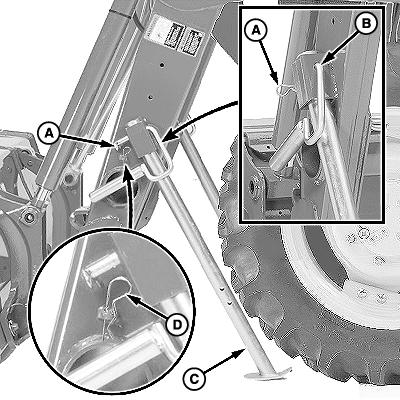

    W09736-UN-04SEP08

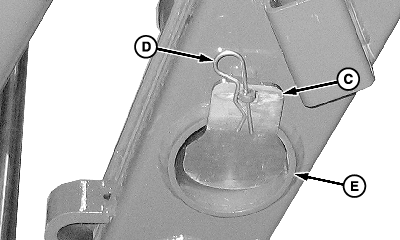

    W09737-UN-04SEP08

    A - Spring Locking Pin (1 each side)

    B - Mast Pin (1 each side)

    C - Parking Stand (2 used)

    D - Spring Locking Pin (1 each side)

    E - Storage Tube

    Remove spring locking pins (A), mast pins (B) and parking stands (C).

---




15. Remove spring locking pins (D) from storage location.

16. Install parking stands (C) into each end of storage tube (E). Fasten with spring locking pins (D).

17.

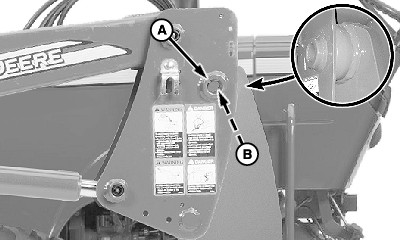

    W09738-UN-25AUG08

    A - Bushing, Mast

    B - Bushing, Frame

    Make sure mast bushings (A) are aligned with frame bushings (B) on both sides of loader.

---




18.

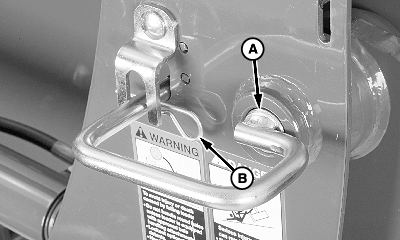

    W09739-UN-25AUG08

    Left-Hand Side Shown

    A - Pin, Mast (2 used)

    B - Spring Locking Pin (2 used)

    Install pin (A) on both sides of loader.

---




19. Fasten with spring locking pins (B).

20.

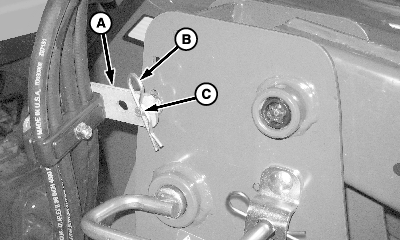

    W09734-UN-04SEP08

    Upper Hose Support

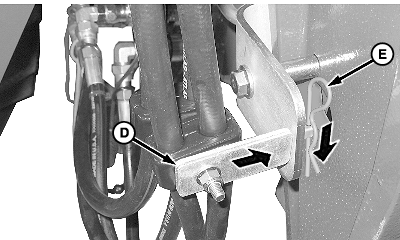

    W20122-UN-29OCT08

    Lower Hose Support (Right-Hand Side—5M Series and 5105 ML Tractors Only)

    A - Hose Support (upper)

    B - Spring Locking Pin

    C - Drilled Round-Head Blot

    D - Hose Support (lower)

    E - Spring Locking Pin

    Right-Hand Side (If Equipped with Mid-Mount Couplers):

    1. Install upper hose support (A) on drilled round-head bolt (C) and fasten with spring locking pin (B).

    2. 5M Series and 5105ML Tractors only: Install lower hose support (D) on bracket, as shown, and fasten with spring locking pin (E).

---
