Every 10 Hours

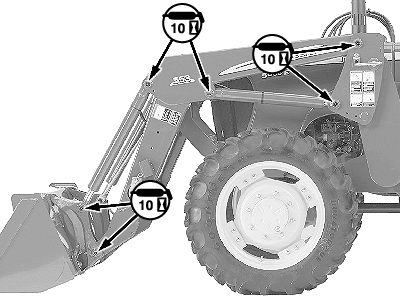

Loader

W09792
W09792-UN-25AUG08

Left-Hand Side Shown

Lubricate twelve fittings, six on each side of loader.

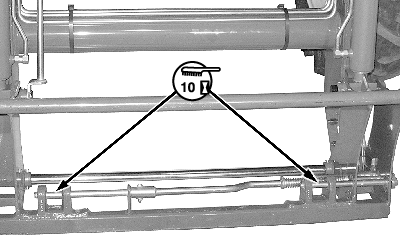

Global Carrier—Latch Pin

W09829
W09829-UN-04SEP08

Clean and lubricate latch pins on both sides of carrier, if equipped. Make sure pins engage freely.

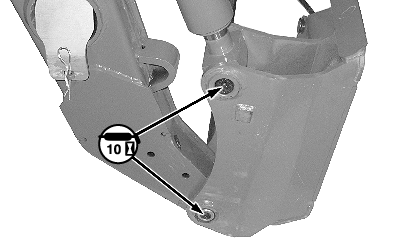

Skid-Steer Attachment Carrier

W20033
W20033-UN-20OCT08

Apply grease to lubrication fittings on both sides.

OUMX005,000283E-19-20081020
