Detaching the Bucket or Attachment


Hydraulic Operated Attachment (Grapple)

  1. CAUTION:

    X9811
    X9811-UN-23AUG88

    W03317
    W03317-UN-31MAR99

    Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high pressure fluids.

    If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene may result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.

    Shut off tractor engine and remove key.


  2. Move control lever(s) back and forth and side-to-side (if applicable) several times to relieve system pressure. (See your tractor Operator's Manual.)

  3. W20038
    W20038-UN-15OCT08

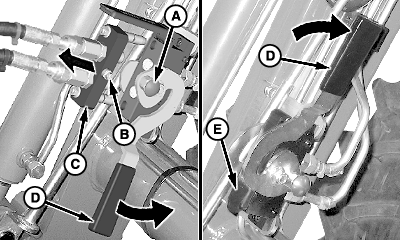

    A - Knob

    B - Pin (1 each side)

    C - Attachment Coupler Half with Hoses

    D - Lever

    E - Cover

    Push red knob (A) IN and rotate lever (D) forward to disengage pins (B), separating coupler halves.


  4. Remove attachment coupler half with hoses (C) from loader coupler.

  5. IMPORTANT: Lever (D) must be in the locked (UP) position when attachment coupler half with hoses are removed to avoid interference with tractor components. Cover (E) must also be lowered to protect connection surface of loader coupler half.

    Lower cover (E).

  6. Rotate lever (D) around and rearward, locking lever in UP position.


500-Style Carrier/Attachment

  1. W09790
    W09790-UN-25AUG08

    W09791
    W09791-UN-25AUG08

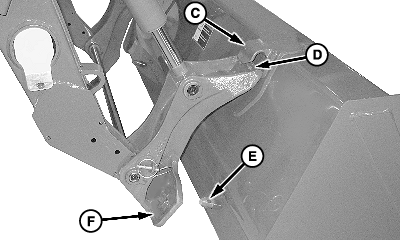

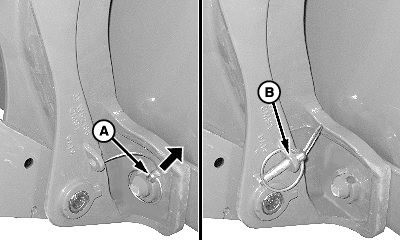

    A - Quick Lock Pin

    B - Storage Position

    C - Hook

    D - Carrier

    E - Bucket Pin

    F - Carrier Strap

    Start tractor engine.


  2. NOTE: Procedure is the same for all attachments. Bucket attachment shown.

    Roll bucket back slightly and raise boom approximately 460 mm (18 in.) above ground level.

  3. Set parking brake and/or place transmission in PARK and shut off tractor engine.

  4. Remove quick lock pin (A) from each side of attachment.

  5. Store pins in storage position (B).

  6. Start tractor engine. Slowly extend bucket cylinders until pin (E) releases from carrier strap (F) on each side of bucket/attachment.

  7. Lower loader boom, place transmission in REVERSE and move away from bucket/attachment. Carrier (D) will release from hook (C) on each side of bucket/attachment.

  8. Set parking brake and/or place transmission in PARK. Shut off tractor engine and remove key.


Global Carrier Attachment (Manual)

  1. W09831
    W09831-UN-04SEP08

    Left-Hand Side

    W09832
    W09832-UN-04SEP08

    W09833
    W09833-UN-04SEP08

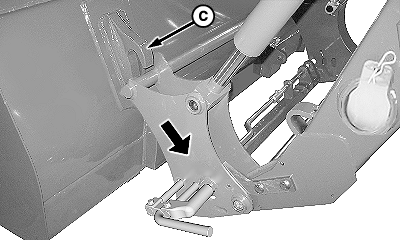

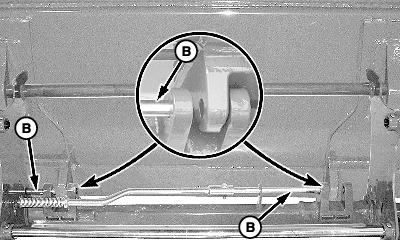

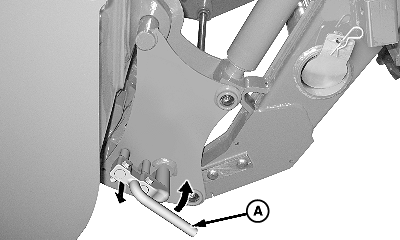

    A - Latch Lever

    B - Pins

    C - Hook (1 each side)

    Level bucket or attachment and lower until approximately 400 mm (16 in.) off ground.


  2. Roll back bucket or attachment slightly to allow movement of latch pin.

  3. Place transmission in PARK and shut off engine.

  4. Pull latch lever (A) outward, to disengage carrier pins (B) from bucket, and rotate upward to lock into place.

  5. Start tractor engine. Place transmission in NEUTRAL and release parking brake.

  6. Tilt carrier forward (extend bucket cylinders) and lower loader until carrier brackets clear hooks (C).

  7. Place transmission in REVERSE and slowly back away from bucket/attachment.

  8. Roll back carrier completely to allow latch pin to slide into the locked position.

  9. Lower loader to the ground, place transmission in PARK, shut off engine and remove key.


Skid-Steer Carrier/Attachment

  1. W08389
    W08389-UN-29NOV06

    Left-Hand Lock Pin

    W09864
    W09864-UN-10SEP08

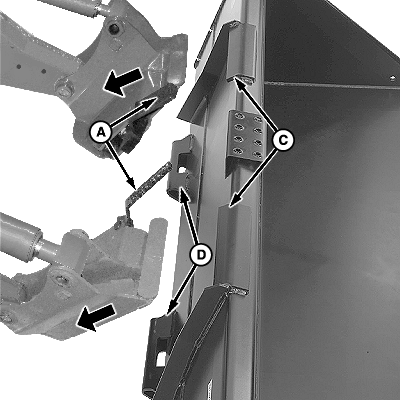

    A - Latch Handles

    B - Lock Pin (1 each side)

    C - Lip

    D - Latches

    Start tractor engine and position machine on flat level ground. Level bucket/attachment and lower loader completely to the ground.


  2. Place transmission in PARK and shut off engine.

  3. IMPORTANT: Make sure both latch handles (A) are completely up and lock pins (B) are fully retracted.

    Raise both latch handles (A) to the UP (unlatched) position.

  4. Start tractor engine and place transmission in NEUTRAL. Slowly tilt carrier forward (extend bucket cylinders) until carrier clears bottom latches (D).

  5. Place transmission in REVERSE and slowly back away from bucket/attachment.

  6. Lower loader to the ground, place transmission in PARK, shut off engine and remove key.
