Prepare the Tractor

1. Prepare the tractor for the loader. Refer to Prepare the Tractor section for the following:

   • Removing front weights
   • Tire requirements
   • Tread settings
   • Rear ballast requirements



2. IMPORTANT:


   W03106-UN-11NOV98

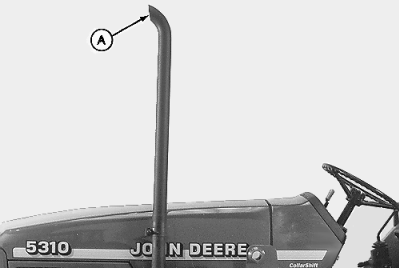

   A - Exhaust Pipe Outlet

   To help prevent damage to the tractor or loader caused by interference between the loader and exhaust pipe, position the exhaust pipe outlet (A) forward.

   Install mounting frames. (Refer to Installation Instructions available online.)

---




3. 5M Series and 5105ML Tractors: Install multicoupler, if ordered. (Refer to Installation Instructions available online.)

4. 5M Series and 5105ML Tractors: Install toolbox support bracket and toolbox. (Refer to Installation Instructions available online.)

5. Install hood guard. (Refer to Installation Instructions available online.)

6. Install hydraulic valves/controls. (Refer to Installation Instructions available online.)
