Using Bucket Level Indicator

NOTE:

W09789
W09789-UN-04SEP08

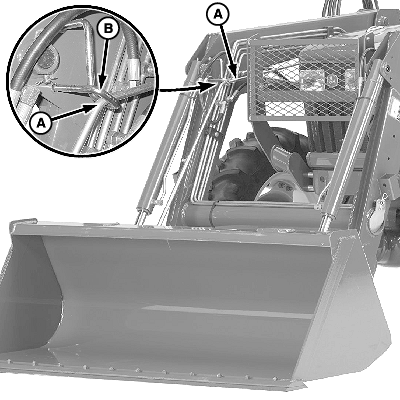

A - Bucket Level Indicator

B - Guide

Top of bucket has a “flat top” feature to help operator to determine that bucket is level.

Cleaning concrete surfaces causes rapid bucket wear. Bucket level indicator (A) helps to ensure bucket rides on wear pads.

NOTE: Indicator position for a bucket will not be the same for an attachment.

When bucket is level, bend in indicator rod (A) will rest in the bottom of guide (B).

When using level indicator for an attachment other than a bucket: Level the attachment and reposition the indicator. (See ADJUSTING BUCKET LEVEL INDICATOR in Service section.)
