Leveling and Scraping Forward

IMPORTANT: To avoid damage to loader or bending the bucket cutting edge on a solid object while scraping forward, position the bucket level or just below level. Use FLOAT to reduce wear on cutting edge and damage to concrete when scraping concrete.

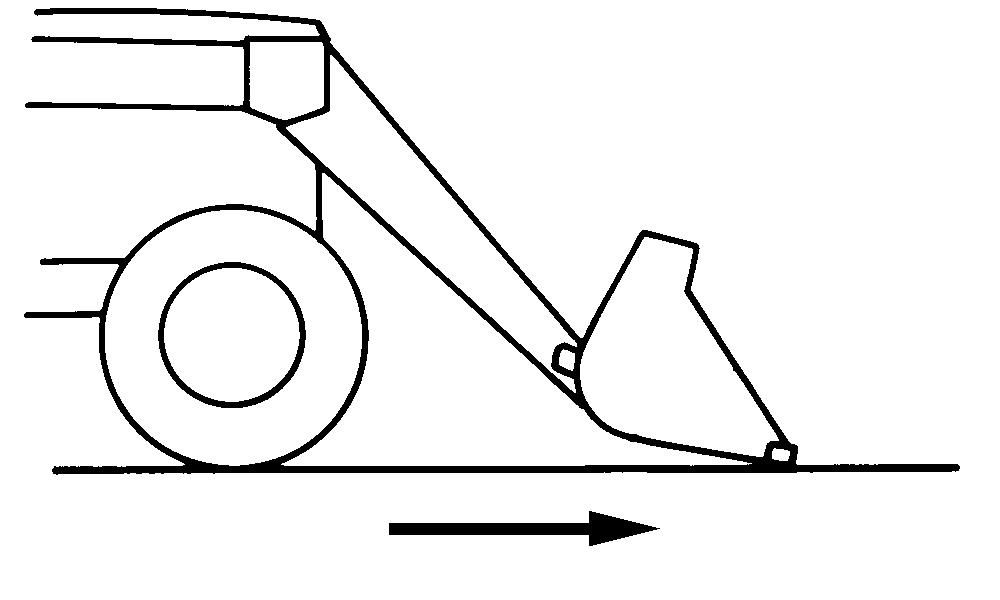

W01785
W01785-UN-07JAN97

To level or scrape forward, position bucket level or slightly below level.

Use FLOAT to reduce down pressure and wear on cutting edge when scraping concrete. Using FLOAT also reduces damage to concrete surface.

OUO6038,0001590-19-20101006
