Leveling in Reverse

1. IMPORTANT:

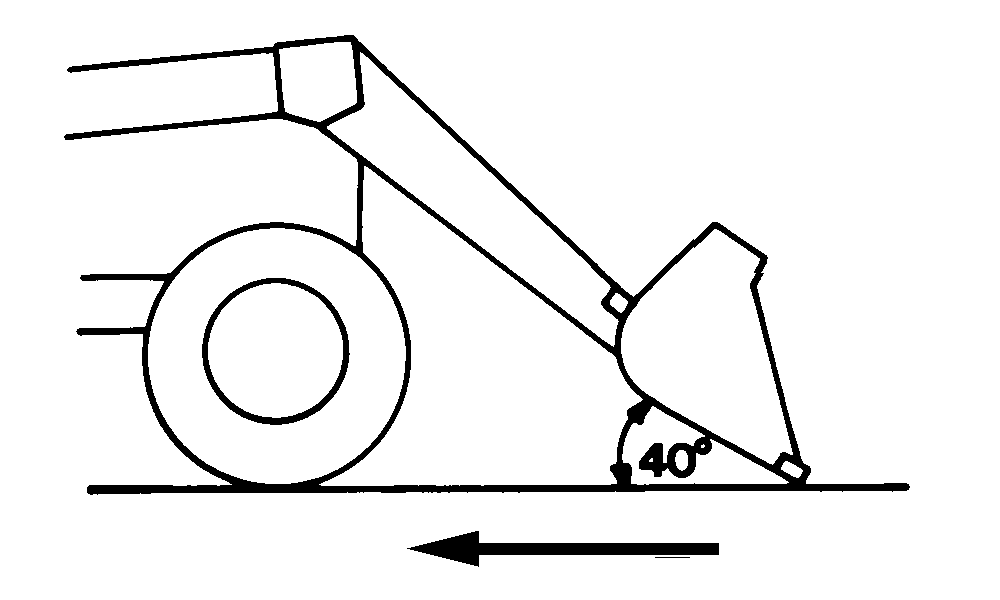

   W01786-UN-07JAN97

   To avoid damage to loader or bending the bucket cutting edge on a solid object while leveling in reverse, position the bucket less than 40° below level. Use FLOAT to reduce down pressure.

   Position bucket 40° or less below level.

---




2. When possible, use "FLOAT" to reduce down pressure on bucket.

3. Back up slowly.
