Mounting Frame Hardware—5210, 5310 and 5320 Narrow Tractors Without Cab
IMPORTANT:

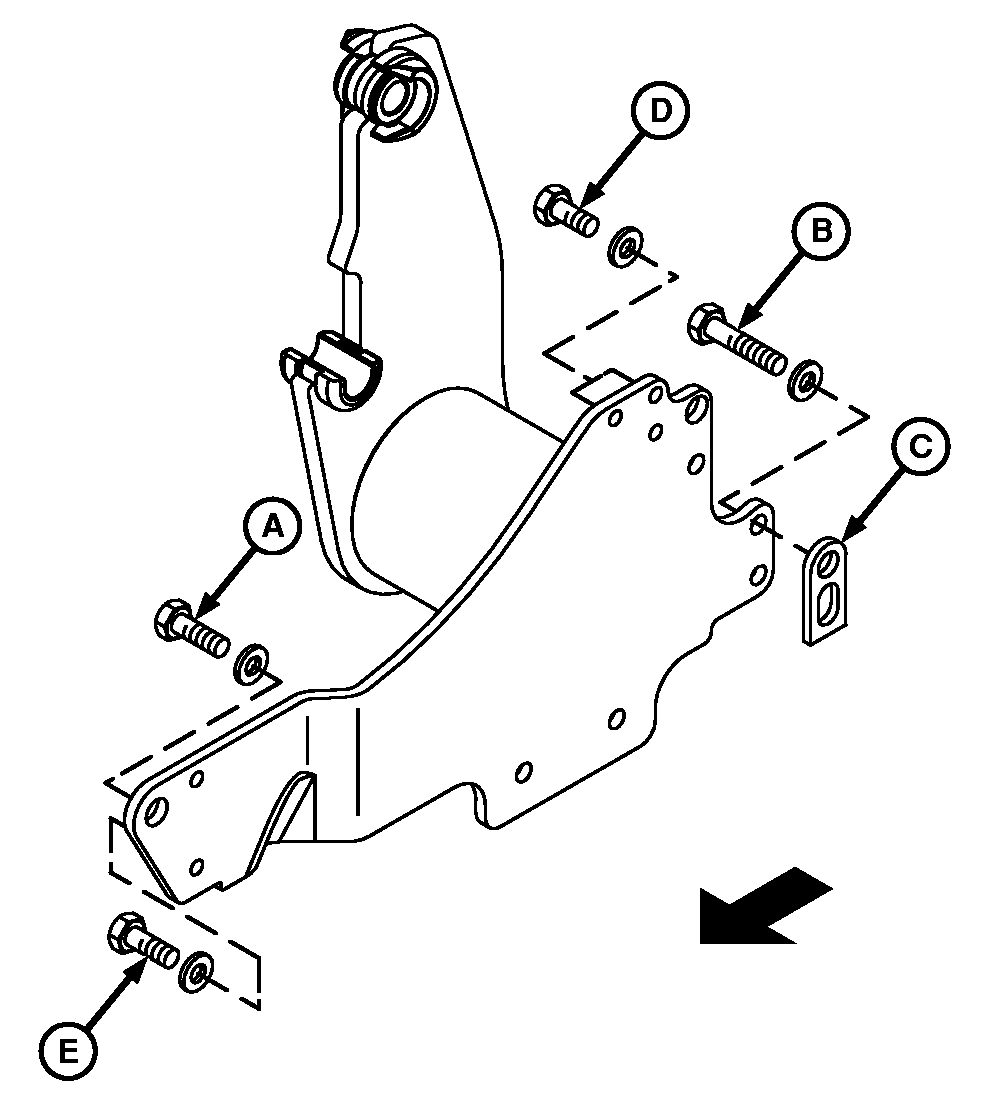

W09913-UN-16SEP08
A - Cap Screw and Washer, M16 x 70
B - Cap Screw and Washer, M20 x 65
C - Spacer
D - Cap Screws and Washers, M16 x 35
E - Cap Screws and Washers, M16 x 50
Help prevent damage to the tractor or loader caused by operating with loose mounting hardware. Tighten loader mounting frame hardware after the first 10 hours of operation and again after every 50 hours.
| Item | Measurement | Specification |
| Mounting Frame-to-Tractor Frame Hardware | ||
| M16 Cap Screws (A, D, and E) | Torque | 275 N•m (200 lb-ft) |
| M20 Cap Screws (B) | Torque | 530 N•m (400 lb-ft) |
|
OUO6038,0001DFA-19-20081021 |
