Every 50 Hours


Tighten Loader Frame Mounting Hardware

IMPORTANT:

W09793
W09793-UN-25AUG08

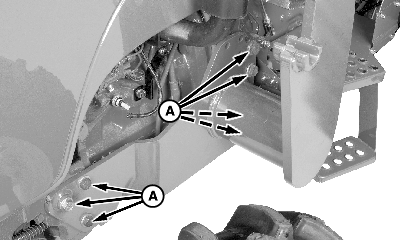

Mounting Frame—5000 Series Tractors

W20123
W20123-UN-28OCT08

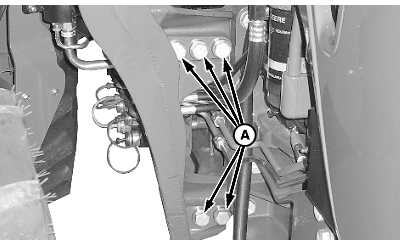

5M Series Tractors

W20574
W20574-UN-04DEC09

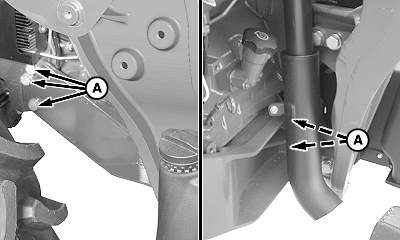

5105ML Tractor with Side Frames

A - Mounting Hardware

Help prevent damage to the tractor or loader caused by operating with loose mounting hardware. Tighten loader mounting frame hardware after the first 10 hours of operation and again after every 50 hours.

See Service section for specific hardware torque.

OUO6064,00009AE-19-20120928
