Mounting Frame Hardware—5E Series Without Cab, 5X03 Series, 5210, 5220, 5310 and 5320 Tractors (Except Narrow Tractors Without Cab)
IMPORTANT:

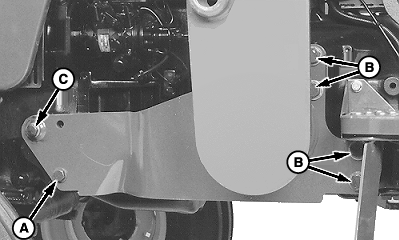

W09800-UN-27AUG08
Left-Hand Side Shown
A - Cap Screws and Washers, M16 x 50
B - Cap Screws and Washers, M20 x 65
C - Cap Screws and Washers, M16 x 70
Help prevent damage to the tractor or loader caused by operating with loose mounting hardware. Tighten loader mounting frame hardware after the first 10 hours of operation and again after every 50 hours.
| Item | Measurement | Specification |
| Mounting Frame-to-Tractor Frame Hardware | ||
| M16 Cap Screws (A and C) | Torque | 275 N•m (200 lb-ft) |
| M20 Cap Screws (B) | Torque | 530 N•m (400 lb-ft) |
|
OUO6064,00009EF-19-20121022 |
