Accessing Front of Tractor


5D Series, 5E Series (except 5083E, 5085E (IT4), 5093E, 5100E (IT4), and 5101E), and 5M Series Tractors

CAUTION:

W20040
W20040-UN-20OCT08

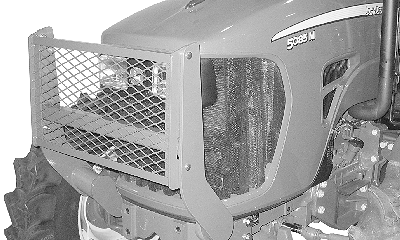

5M Series Tractor Shown

If unable to access front of tractor with loader attached, remove loader or raise up and support with safety stands. Refer to SERVICING LOADER AND/OR TRACTOR SAFELY (LOADER ATTACHED) at the beginning of this section.

Hood guard does not fold down. Hood can be raised with hood guard in place.


5025 Series, 5083E, 5085E (IT4), 5093E, 5100E (IT4), 5101E, and 5EN Series Tractors

CAUTION:

W07097
W07097-UN-19OCT04

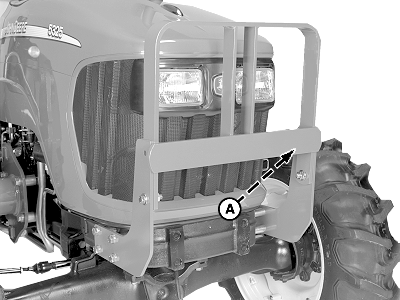

A - Lever

If unable to access front of tractor with loader attached, remove loader or raise up and support with safety stands. Refer to SERVICING LOADER AND/OR TRACTOR SAFELY (LOADER ATTACHED) at the beginning of this section.

Turn lever (A) and pivot guard forward to access front of tractor.

OUO6064,0000A59-19-20130108
