Mounting Frame Hardware—5425, 5525, 5603, 5083E, 5085E (IT4), 5093E, 5100E (IT4), 5101E, and 5625 Tractors
IMPORTANT:

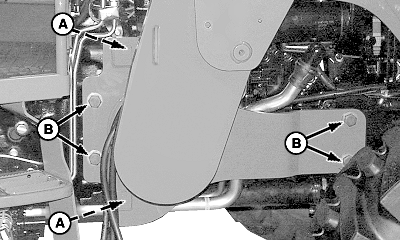

W09804-UN-27AUG08
W09805-UN-27AUG08
Torque Sequence
A - Cap Screws and Washers, M20 x 90
B - Cap Screws and Washers, M20 x 55
Avoid damage to the tractor or loader caused by operating with loose mounting hardware. Tighten loader mounting frame hardware after the first 10 hours of operation and again after every 50 hours.Tighten hardware to specification in the sequence shown.
| Item | Measurement | Specification |
| M20 Cap Screws (A) | Torque | 610 N•m (450 lb-ft) |
| M20 Cap Screws (B) | Torque | 530 N•m (390 lb-ft) |
|
OUO6064,0000A5A-19-20130108 |
