Removing Material from a Pile

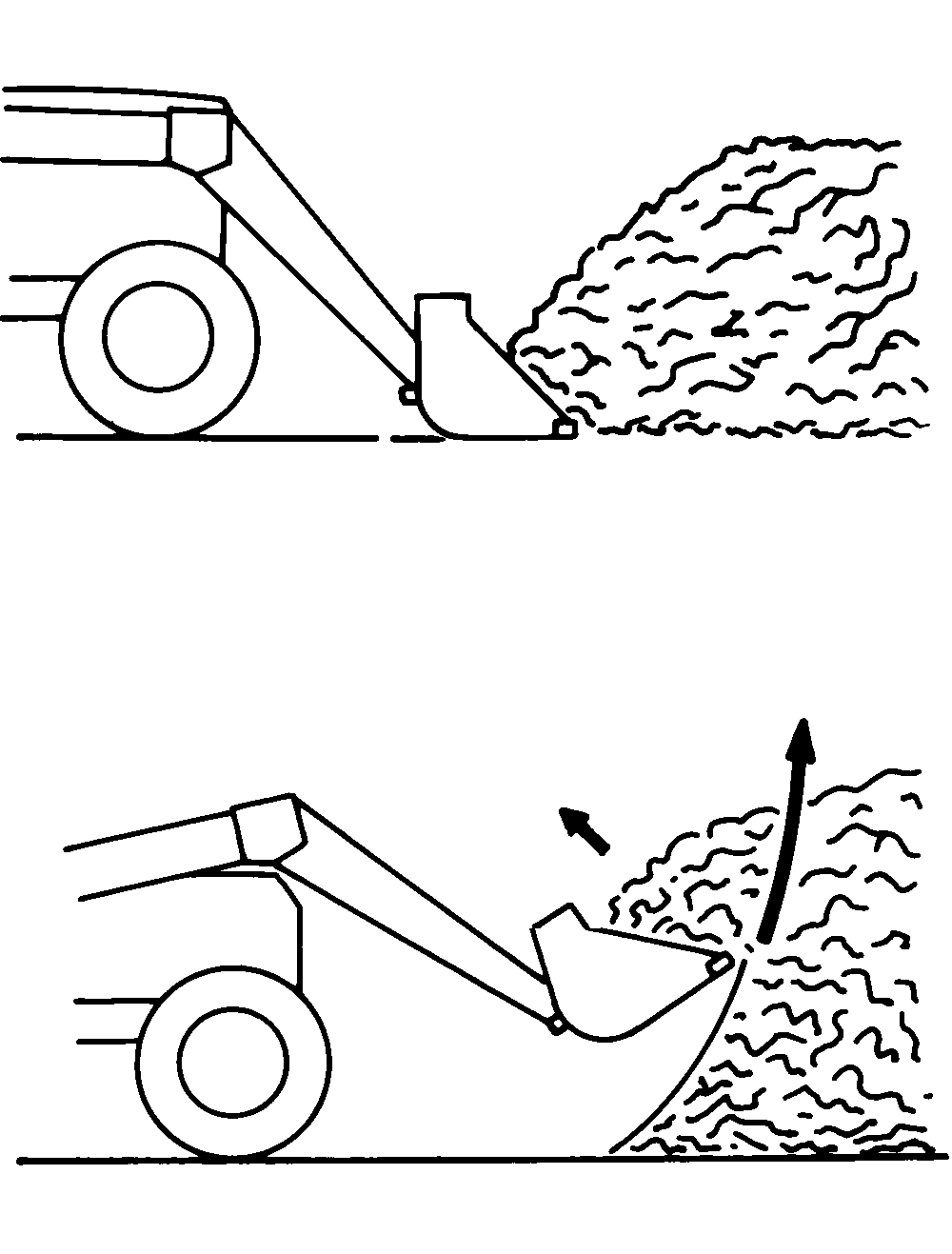

  1. W01783
    W01783-UN-07JAN97

    Approach and enter pile with bucket level. If the pile is high, remove the top first.

    NOTE: Bucket top is parallel to bottom. Bucket is level when top is level. Bucket level indicator attachment is standard equipment.


  2. Use a combined motion of moving forward slowly, lifting and rolling back to fill the bucket.

    NOTE: Overfilling the bucket in heavy or packed material may cause the loader to stall. If loader stalls, back up or take less material.

OUO6077,00018CE-19-20041117
