Mounting Frame Hardware—5225 and 5325 Tractors
IMPORTANT:
W09801-UN-27AUG08
W09802-UN-27AUG08
Torque Sequence

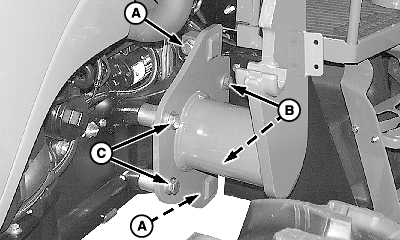

A - Cap Screws and Washers, M20 x 90
B - Cap Screws and Washers, M20 x 55
C - Flange Head Cap Screws, M20 x 100
Help prevent damage to the tractor or loader caused by operating with loose mounting hardware. Tighten loader mounting frame hardware after the first 10 hours of operation and again after every 50 hours.Tighten hardware to specification in the sequence shown.
| Item | Measurement | Specification |
| M20 Cap Screws (B) | Torque | 530 N•m (390 lb-ft) |
| M20 Cap Screws (A and C) | Torque | 610 N•m (450 lb-ft) |
|
OUO6077,00018EE-19-20080827 |
