Mounting Frame Hardware—5325N Narrow Tractor
IMPORTANT:

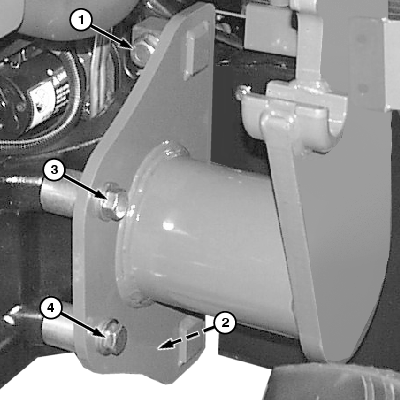

W09803-UN-27AUG08
Torque Sequence
Help prevent damage to the tractor or loader caused by operating with loose mounting hardware. Tighten loader mounting frame hardware after the first 10 hours of operation and again after every 50 hours.Tighten hardware to specification in sequence shown.
| Item | Measurement | Specification |
| M20 Cap Screws | Torque | 610 N•m (450 lb-ft) |
|
OUO6077,0001905-19-20080827 |
