Mounting Frame Hardware—5425N, 5525N, and 5EN Series Narrow Tractors
IMPORTANT:

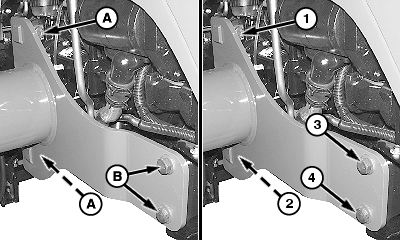

W09806-UN-27AUG08
Mounting Hardware—Torque Sequence
A - Cap Screws and Washers, M20 x 90
B - Cap Screws and Washers, M20 x 55
Help prevent damage to the tractor or loader caused by operating with loose mounting hardware. Tighten loader mounting frame hardware after the first 10 hours of operation and again after every 50 hours.Tighten hardware to specification in the sequence shown.
| Item | Measurement | Specification |
| M20 Cap Screws (A) | Torque | 610 N•m (450 lb-ft) |
| M20 Cap Screws (B) | Torque | 530 N•m (390 lb-ft) |
|
OUO6077,0001906-19-20090209 |
