Mounting Frame Hardware—5025 Series, 5415 (020331 - ), 5615 (020106 - ), 5715 (020368 - ) Series Tractors

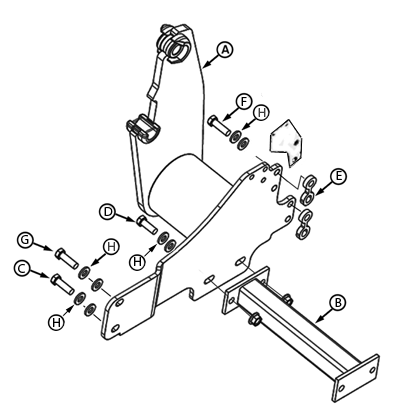

P16272-UN-08AUG11

A - Mounting Frame

B - Cross Tie

C - Cap Screw, M20 x 55

D - Cap Screws, M20 x 55 (4 used)

E - Spacer

F - Cap Screws, M20 x 65 (4 used)

G - Cap Screw, M20 X 55

H - Lock Washer, 21 X 30.5 X5.84MM

IMPORTANT: Help prevent damage to the tractor or loader caused by operating with loose mounting hardware. Tighten loader mounting frame hardware after the first 10 hours of operation and again after every 50 hours.

Tighten hardware to specifications in the sequence shown.

Item	Measurement	Specification
Cap Screw (C)	Torque	610 N•m (450 lb-ft)
Cap Screw (D)	Torque	610 N•m (450 lb-ft)
Cap Screw (F)	Torque	610 N•m (450 lb-ft)
Cap Screw (G)	Torque	610 N•m (450 lb-ft)
