Using Bucket Level Indicator
IMPORTANT: Avoid rapid bucket wear. Use bucket level indicator so wear pads contact rough surfaces instead of bucket edge.
W23313-UN-13DEC12

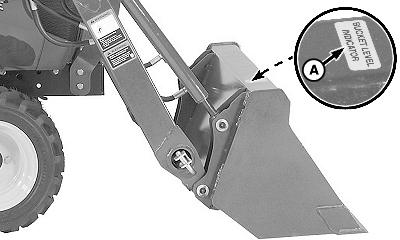

D120 Loader—Bucket Level Indicator Label
A - Indicator Label
D120 Loader: An indicator label (A) is used. Bucket is level when indicator label, viewed by operator in tractor seat, is level to the ground.
W23289-UN-14NOV12

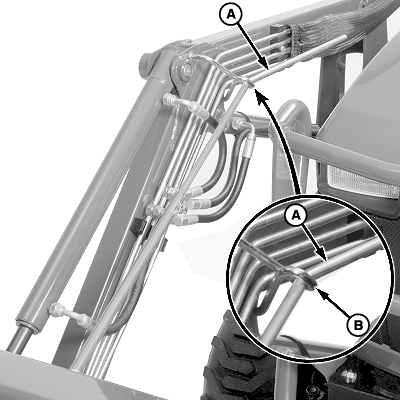

H120 Loader—Bucket Level Indicator Rod
A - Indicator Rod
B - Bracket
H120 Loader: An indicator rod (A) is used. Adjust bucket until bend in rod is resting in bracket (B) for level operation. (See ADJUST BUCKET LEVEL INDICATOR in the Service section for proper setup.)|
