Attach Loader

1.

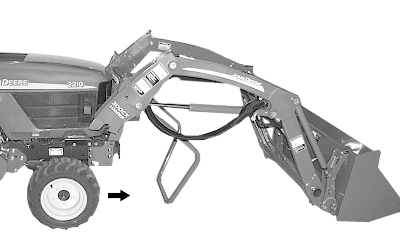

   W07239-UN-28FEB05

   Drive tractor slowly, straight into loader.

---




2. Align masts with mounting frames.

3. Engage tractor parking brake and place transmission in PARK.

4. Shut off tractor engine and remove key.

5. CAUTION:


   X9811-UN-23AUG88

   Avoid injury from escaping hydraulic oil under pressure. Relieve hydraulic pressure in the system.

   Move control levers back and forth and side-to-side (if applicable) several times. (See your tractor Operator’s Manual.)

---




6.

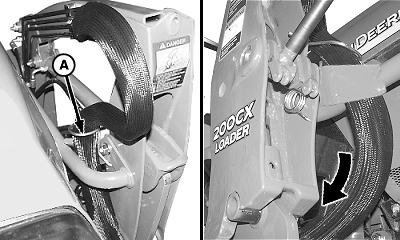

   W09281-UN-01FEB08

   2210, 2305, 2320, 2520 and 2720 Tractors

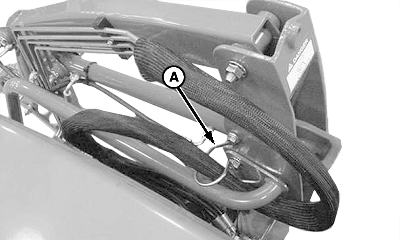

   W07366-UN-15APR05

   4100, 4110 and 4115 Tractors

   A - Hose Guide

   Ensure that hoses are routed through hose guide (A).

---




7. CAUTION: Avoid personal injury caused by unexpected loader movement. Connect hoses correctly.

   NOTE: Identify hose connections by matching color coded couplers. If caps are missing, see IDENTIFY HOSE CONNECTIONS in Service section.

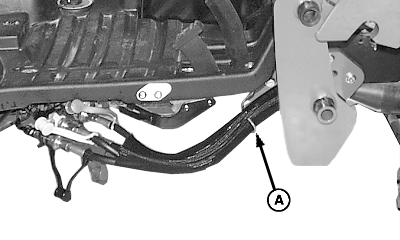

   W07241-UN-24FEB05

   2210, 2305, 2320, 2520 and 2720 Tractors

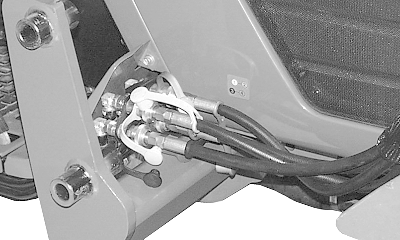

   W07287-UN-10MAR05

   4100, 4110 and 4115 Tractors

   A - Hose Guide

   2210, 2305, 2320, 2520 and 2720 Tractors: Route hoses over mounting frames and through hose guide (A).

---




8. Connect hoses using color-coded dust caps matching numbers or colors on decal by coupler plate.

9. NOTE: To keep masts and frames aligned, drive tractor forward slowly while performing the following procedures.

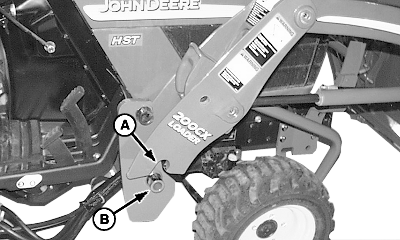

   W07242-UN-24FEB05

   200CX Right-Hand Side Shown

   A - Notch

   B - Bushing

   Ensure bushing (B) on mounting frame is aligned with notch (A) in masts.

---




10. Start tractor engine.

11. Release parking brake and place transmission in NEUTRAL.

12. IMPORTANT: Ensure that masts are fully seated on mounting frames.

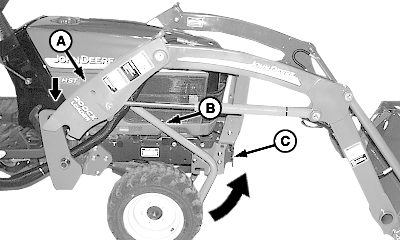

    W07243-UN-24FEB05

    A - Mast

    B - Parking Stand

    C - Weight Bracket

    Slowly retract lift cylinders until masts (A) lower onto mounting frames and parking stand (B) raises up under weight bracket (C).

---




13. CAUTION:


    W20683-UN-17FEB10

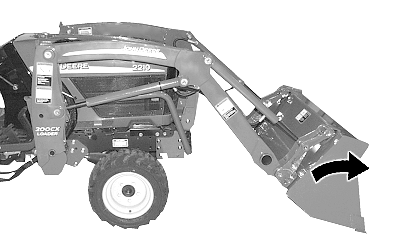

    W07244-UN-24FEB05

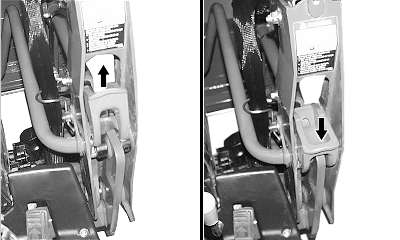

    W07245-UN-28FEB05

    200CX Latches

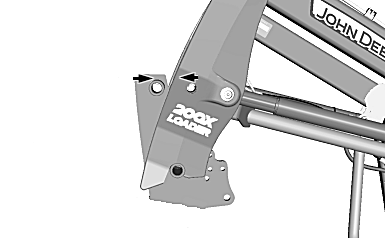

    W20775-UN-26MAR10

    200X Alignment

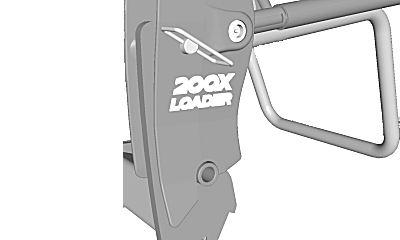

    W20776-UN-25MAR10

    200X Pin

    Avoid personal injury. Do not insert fingers into holes while aligning components.

    NOTE: Insert tapered pin or drift through back of mounting frame to assist alignment.

    200CX Loader: Dump bucket 10—20° and retract lift cylinders until loader masts move back and latches lock over mounting frame bushings.

    200X Loader: Dump bucket 10—20° and retract lift cylinders until holes in mast and mounting frame are aligned. Install pin in each side.

---




14. Extend lift cylinders and lift bucket from ground to ensure that loader is properly mounted.

15. Add appropriate ballast. (See Prepare the Tractor section.)

16. Engage tractor parking brake and place transmission in PARK.

17. Shut off tractor engine and remove key.
