H260 NSL Loader Specifications on 5083E, 5093E, and 5101E Tractors

¹

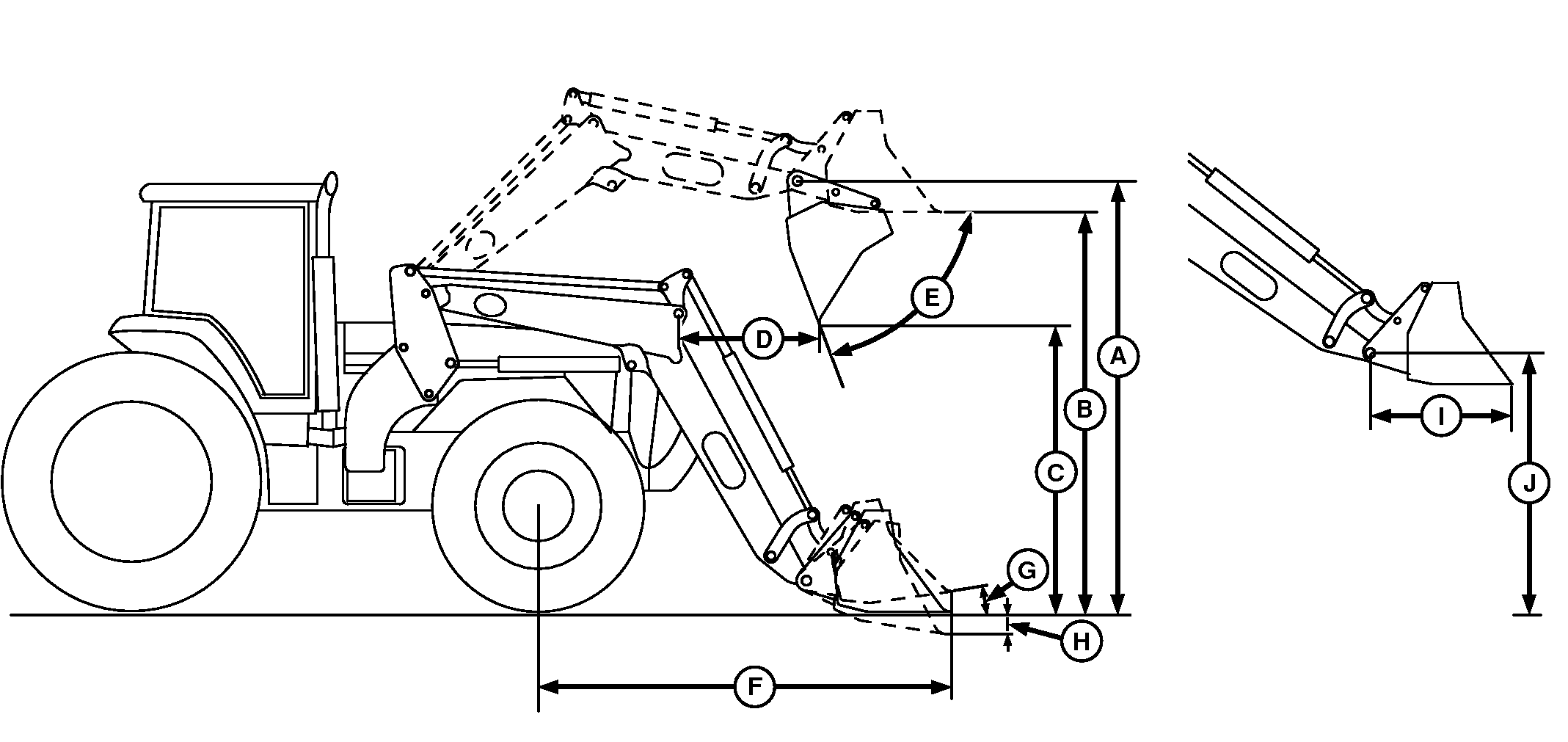

W20964-UN-11OCT10

Tractor Model 5083E, 5093E, and 5101E
Minimum Rear Ballast	Option 1	3-Point Hitch 870 kg (1918 lb.) Plus Rear Axle 360 kg (794 lb.)
	Option 2	Rear Axle Only —
Front Tires	12.4R24
Rear Tires	16.9R30
Heavy-Duty Materials Bucket
Width	1850 mm (73 in.)
Length	—
Mass	228 kg (502 lb.)
Hydraulic System
Rated Flow	60 L/min. (16 gpm)
Maximum Pressure	19 498 kPa (195 bar) (2828 psi)
Cycle Times (in seconds)
Loader Raise Time	6.90
Loader Lower Time	5.20
Bucket Dump Time	5.30
Bucket Rollback Time	3.60
Lift Height (Maximum)
To Pivot Pin (A)	3482 mm (137 in.)
Clearance
Bucket Level (B)	3288 mm (129 in.)
Bucket Dumped (C)	2444 mm (96 in.)
Digging Depth (H)	142 mm (6 in.)

Reach
At Maximum Lift Height with Bucket Dumped (D)	1048 mm (41 in.)
Bucket on Ground with Bucket Leveled (F)	2567 mm (101 in.)
Angles (Maximum)
Dump (E)	73°
Dump at Ground	153°
Rollback (G)	45°
Lift Capacity
To Maximum Height (A) at Pivot Point	1763 kg (3879 lb.)
To Maximum Height (A) at 800 mm (31.5 in.) (I) Ahead of Pivot Point	1212 kg (2666 lb.)
To 1500 mm (59 in.) (J) at Pivot Point	2322 kg (5108 lb.)
Breakout Force
At Pivot Point	2964 kg-force (6521 lb.-force)
800 mm (31.5 in.) (I) Ahead of Pivot Point	2162 kg-force (4756 lb.-force)
