Adjust Bucket Level Indicator

1. NOTE: Indicator position for a bucket will not be the same for another attachment.


   W23605-UN-04APR13


   W23606-UN-04JUN13

   A - Bucket or Attachment

   B - Level Indicator Rod

   C - Bracket

   D - Cap Screw

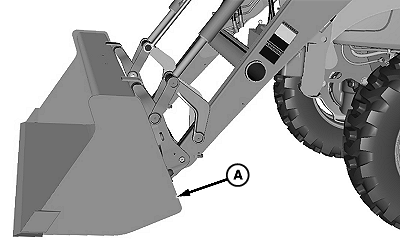

   Position bucket or attachment (A) level on ground.

---

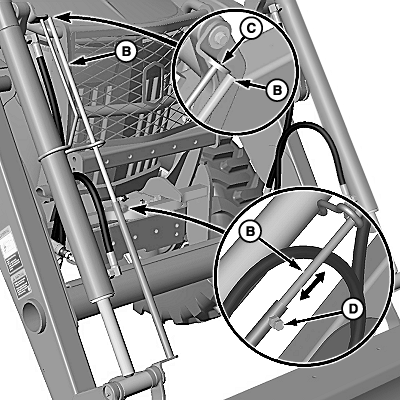

2. Loosen cap screw (D) and adjust level indicator rod (B) until top of rod is even with bracket (C).

3. Tighten cap screw.
