Remove Front Weights

IMPORTANT:

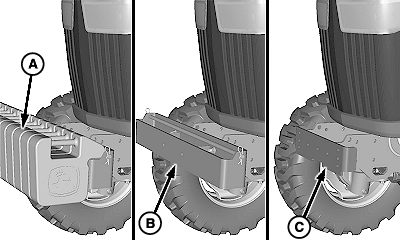

W23420-UN-08APR13

4049R Tractor Shown

A - Weights

B - Weight Bracket Extension

C - Weight Bracket

NOTE: Front weight bracket extension (B) is NOT compatible with the loader.

Remove all front weights (A) and weight bracket extension (B).

IMPORTANT: Front weight bracket (C) MUST NOT be bent or damaged in any way. Replace if necessary.

Weight bracket (C) is required for installation of loader and must remain on tractor.
