Setting Front Tread Width

W23345
W23345-UN-12MAR13

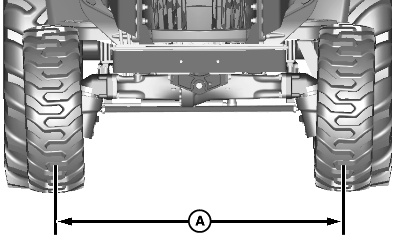

A - Tread Width

Front tread width (A) should be set to the same tread width as rear tires (minimum of 1600 mm [63-in.]).

OUO6038,000218B-19-20130528
