Operate Loader with Multi-Function Lever

W23347-UN-14MAY13

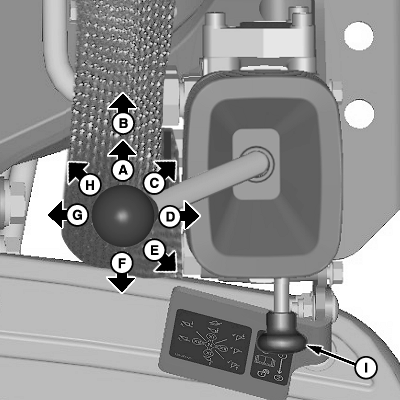

Mast-Mounted Multi-Function Lever

W23757-UN-08JUL13

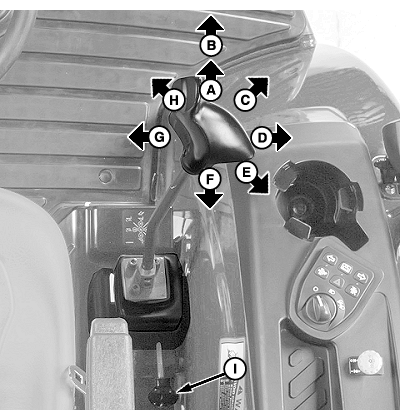

Tractor-Mounted Multi-Function Lever

CAUTION: To help prevent personal injury caused by unintentional lowering of loader, do not use FLOAT position to lower loader. In float position the loader falls to the ground without restriction.

NOTE: Refer to symbols on labels located near multi-function lever.

Lever returns to NEUTRAL by itself from all positions except FLOAT. Pull lever back to release from FLOAT.

Key	Lever Movement	Loader Operation
A	Forward	Boom Lower
B	Locked Forward	Boom Float
C	Forward, 45° to Right-Hand Side	Boom Lower, Bucket Dump
D	To Right-Hand Side	Bucket Dump
E	Back, 45° to Right-Hand Side	Boom Raise, Bucket Dump
F	Back	Boom Raise
G	To Left-Hand Side	Bucket Roll Back
H	Forward, 45° to Left-Hand Side	Boom Lower, Bucket Roll Back
I	Pull Knob Out	Lock Out Control Lever

NOTE: Low oil flow restricts two loader operations at one time such as RAISE and ROLL BACK. The operation that requires the least hydraulic force occurs first.

Stop engine and move control lever into every position to relieve hydraulic pressure.

NOTE: Multi-function lever has a lever lock (I). (See LOCK OUT MULTI-FUNCTION LEVER in this section.)
