Detach Bucket

1.
   W23350-UN-18JAN13


   W23351-UN-16MAY13

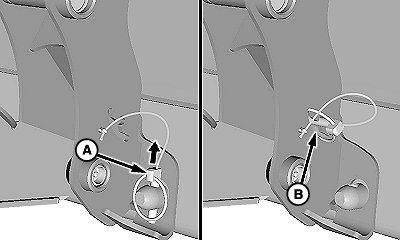

   A - Quick Lock Pin

   B - Storage Position

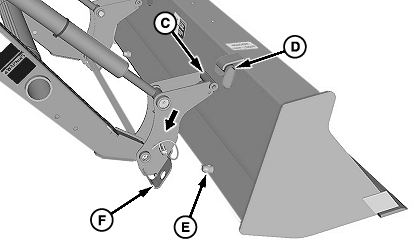

   C - Holder

   D - Hook

   E - Pin

   F - Holder Strap

   Start tractor engine.

---




2. Release parking brake and place transmission in NEUTRAL.

3. Roll bucket back slightly and raise boom approximately 460 mm (18 in.) above ground.

4. Remove quick lock pin (A) from each side.

5. Store pins in storage position (B).

6. Extend bucket cylinders until pin (E) releases from holder strap (F) on each side.

7. Lower loader boom, place transmission in REVERSE, and move away from bucket. Holder (C) releases from hook (D) on each side of bucket.

8. Set parking brake and place transmission in PARK. Shut off tractor engine and remove key.
