Attach Bucket

1.

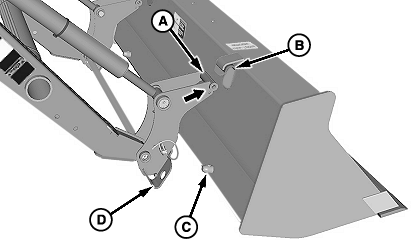

   W23352-UN-16MAY13


   W23353-UN-18JAN13

   A - Holder

   B - Hook

   C - Pin

   D - Holder Strap

   E - Quick Lock Pin

   F - Storage Position

   Start tractor engine.

---




2. Extend bucket cylinders to angle carrier forward.

3. Align holders (A) with hooks (B).

4. Raise loader until carrier engages hooks, then roll back bucket.

5. Raise loader high enough to check that straps (D) engage pins (C) on both sides.

6. Shut off tractor engine.

7. Remove quick lock pins from storage position (F).

8. Install quick lock pins (E) through bucket pins.

9. CAUTION: To avoid personal injury, make sure bucket is properly secured to carrier.

   Start tractor engine. Tilt bucket forward (extent bucket cylinders) and apply down pressure on bucket against ground to verify that the carrier is fully engaged.

10. Lower loader to the ground and shut off tractor engine.
